The use of highway guardrail forming machine has greatly improved the management level of highways and reduced the occurrence of traffic accidents, thus eliminating the occurrence of joint litigation cases and ensuring the smoothness of highways to a large extent. Expressway with high speed and high management level.

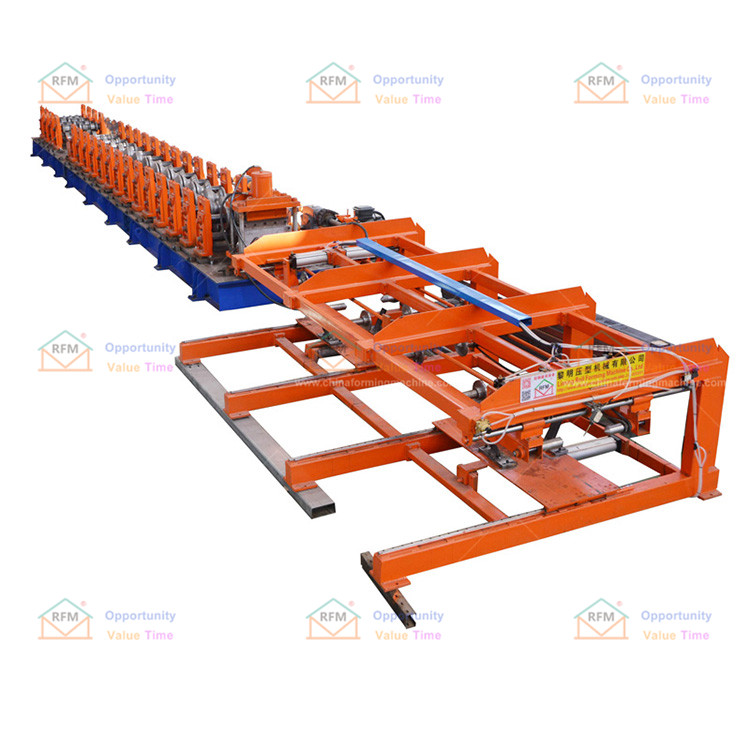

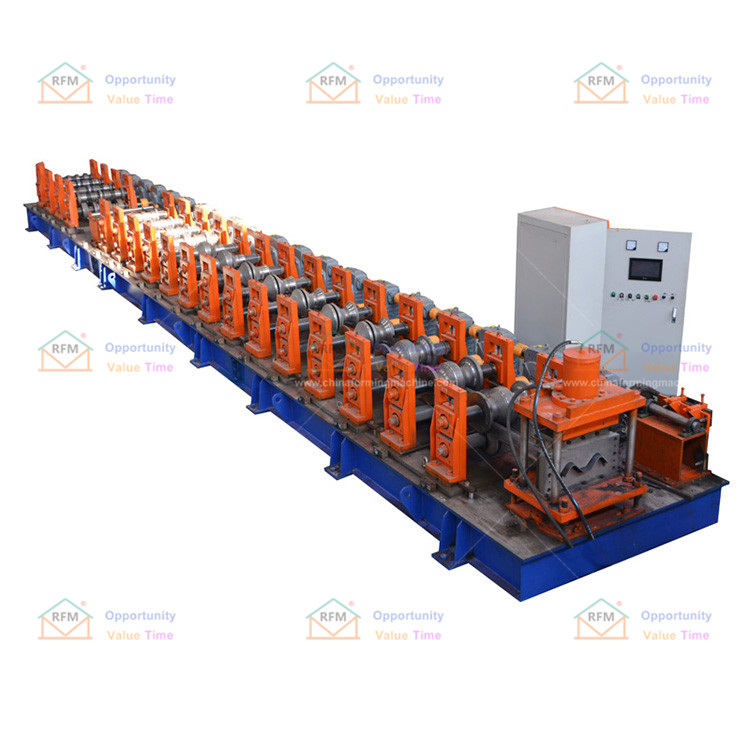

Main technical parameters of high-speed guardrail board forming tile press
1. Open the material and enter the guide wheel of the unit
2. Leveling is upper three rolls and lower four rolls, the diameter of the forming shaft is Φ80mm (material 45# is tempered), the roll material is GCR15, quenched to HRC58°-62°, the surface is hard chrome plated, and the pressing thickness is 2.5m-3.0 m.
3. Punching: hydraulic punching (material Cr12 die steel is quenched and can be adjusted arbitrarily before, after, left and right)
4. Cutting off hydraulic shear (material Cr12 quenching HRC60-62)
5. Host power: 15KW
6. Power of cycloid reducer: 15KW
7. Transmission: chain drive, 2 inch single-row chain
8. Motor power of hydraulic station: 15KW, pressure 20Mpa
9. The unit adopts frequency conversion speed regulation 5m-12m/min
10. Inverter, Delta
11. Computer adopts Delta PLC
12. The computer operation panel adopts touch screen display
13. Equipment dimensions: length 18m × width 1.2m × height 1.5m
14. Electrical origin and brand are optional.
15, another universal joint gear box transmission (optional)

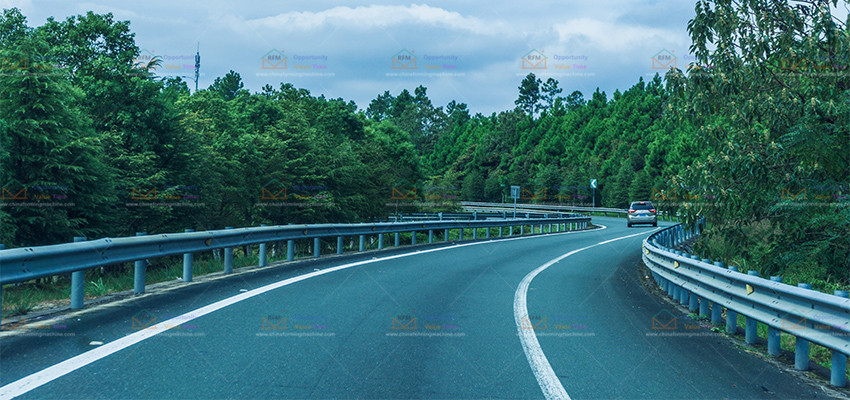

Application Range & Scene

Provide Installation Method & Customized Profile For Free

Professional Inspection Process

Customers’ Application Projects

Inspection/Package/Delivery

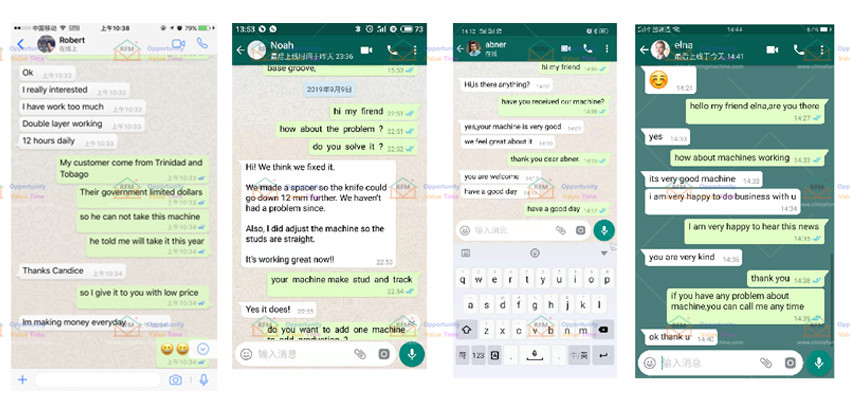

Customer Feedback
