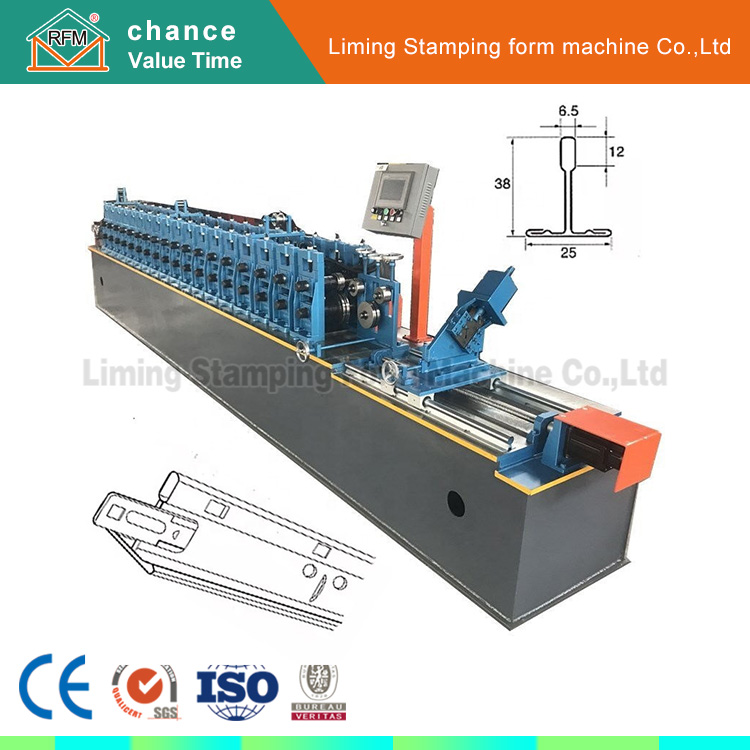

Ceiling system drywall material T bar light keel roll forming machine

Here is a ceiling system use T bar to insert. In recent years, more and more houses use light keel material.The light keel material has below advantage:

• Steady structure.
• Lower costs
• Light keel structure space span is larger than concrete building.
• Production period is shorter than normal building.

T bar light keel roll forming machine work process

Uncoiling—feeding material—main roll former—punching system—cutting system—run out table

Click to watch the T bar light keel roll forming machine video



The main parts of the ceiling system drywall material T bar light keel roll forming machine as below:

1.   3 ton decoiler one set.

2.Feeding device

3. Roll forming machine with vertical iron arch basic frame.

The transmission system is chains, also can independent on your require.

Some of roll forming machines may take the gear or chains into the machine frame.

4. Hydraulic cutting and PLC control .

5.Run out table

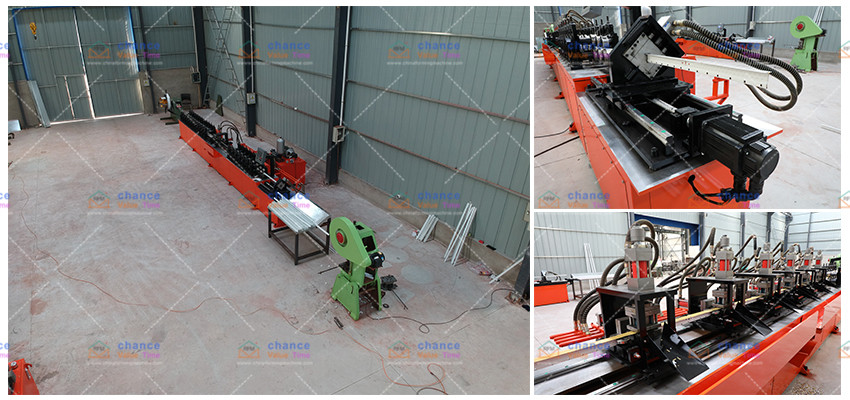

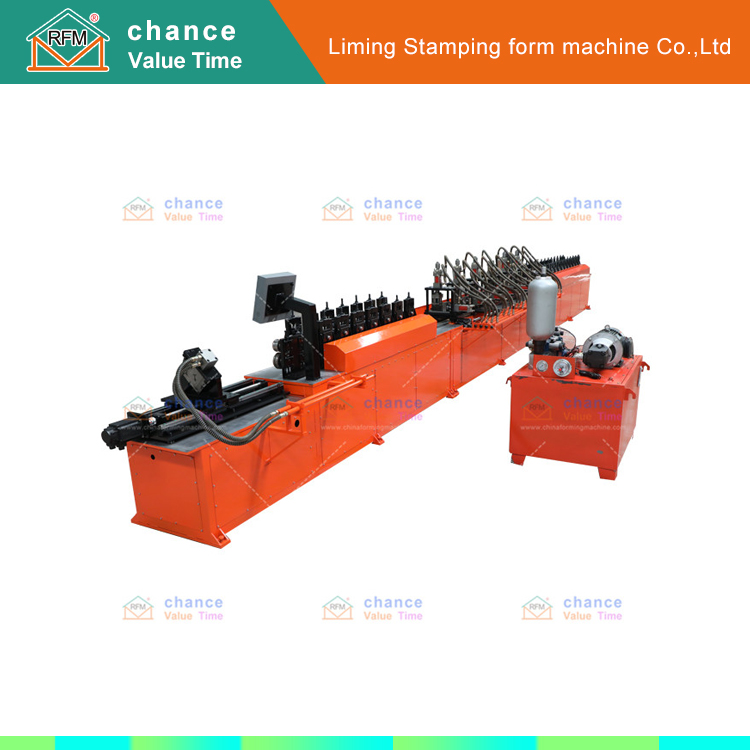

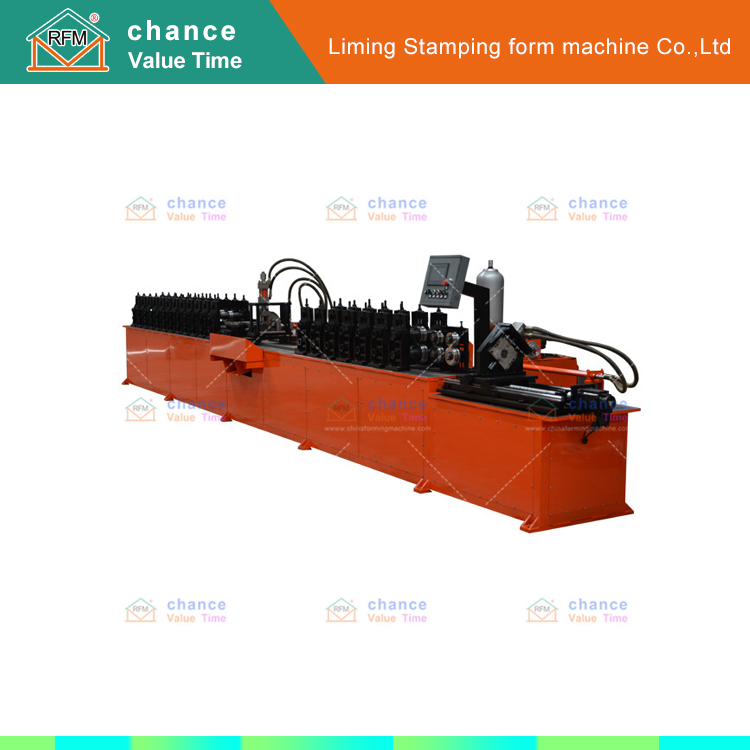

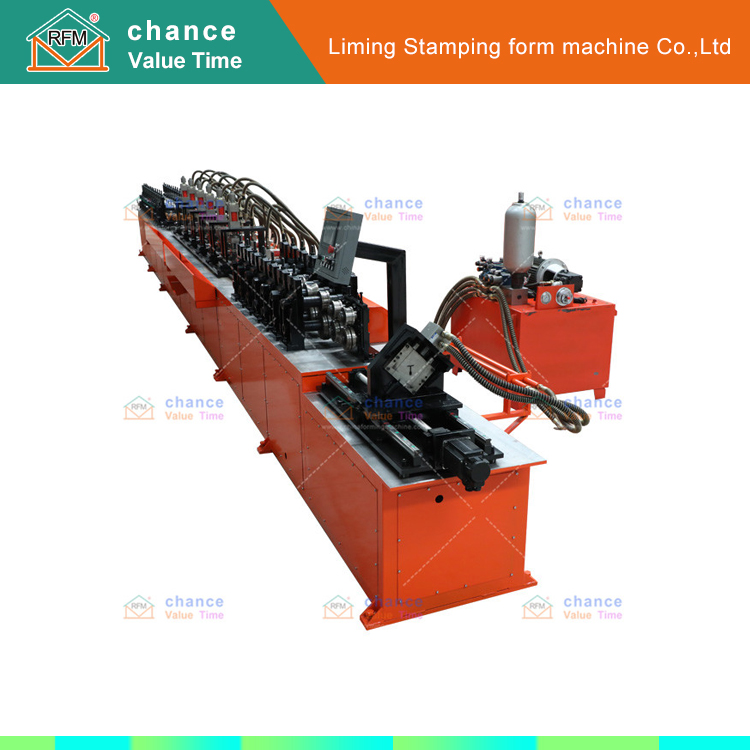

T bar light keel roll forming machine

1. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.



2.How to get a quotation?

a.Give me the profile drawing and thickness,this is the important.

b.Other spicific requirements is welcome,such as the speed,power and voltage you want.



3.How about the machines for testing?

A:Warmly welcome to our factory supervise and inspect anytime;
B:We will arrange the machine test in our factory before the shipment.
C:If the customer can’t come, we will provide the machine running video and photos to them.



4. How can I install my machine when it arrives?
A: We will send technician to install and train your people to use machines if required.If you need,our engineer will go to your factory for teaching.



5.What about your warranty?

A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).And offer life time after sale service.
