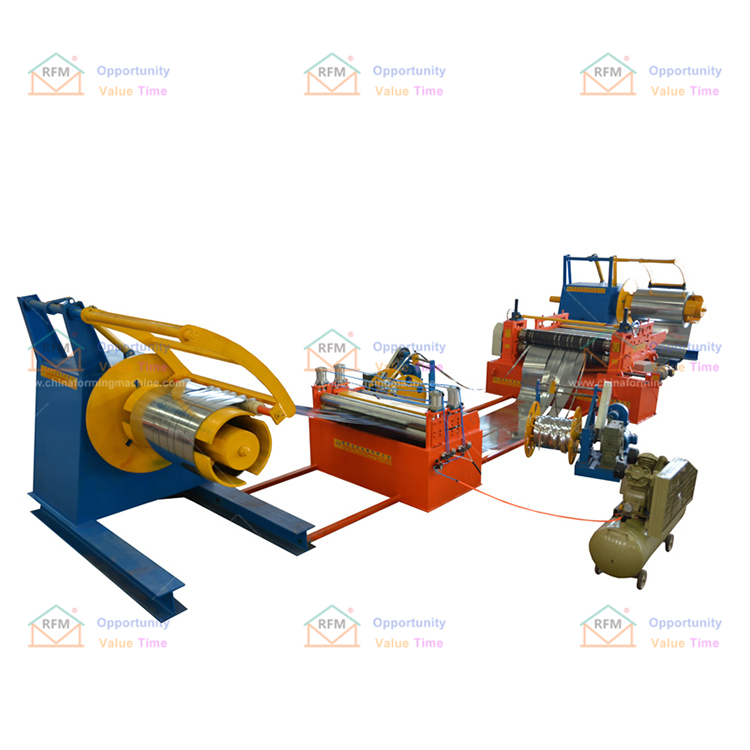

Metal coil slitting machine

LIMING STAMPING FORM MACHINE CO.,LTD focus on the development, production and after-sales of metal/coil flatting equipment such as flat line, slitting machine, cross-cut line, flying shear line and other metal/coil flattening equipment.
We can according to the metal coil material, mechanical performance and technical parameters provided by customers, Professional engineers provide you with efficient, low-consumption, accurate and accurate equipment.

1. Read the drawings carefully and carefully, enter the film width, film length and other data as required and review them. Adjust the guide rail width, punch position and stacker position according to requirements.

2. Measure the actual width of the silicon steel sheet coil to be cut. The measurement accuracy is 0.05 mm. The sheet width tolerance, S degree and wave degree of the coil shall not exceed the standard.

3. Feeding, manual trial cutting, picking, and comparison drawings can only be automatically cut after passing the inspection.

4. During the cutting process, the operator should pay close attention to the operating conditions of each conveying part, and stop the machine immediately if jamming occurs.

5. During the normal operation of the equipment, do not extend any part of the body such as arms into the stacking table and other conveying parts to prevent accidents. If you need to adjust, it should be carried out in the shutdown state.

6. Do not place tools, materials and other debris on the equipment when the equipment is running.

7. When using the crane to load and unload the rolls, be sure to operate according to the regulations to prevent accidents.

8. When lifting and transporting the finished product, the balance of the material table must be adjusted, slow up and down, and use anti-skid pieces to hurt people.

9. The waste basket should be replaced in time when the waste is full.

10. During the work process, if the equipment is abnormal, it should be shut down immediately for handling, and the equipment maintenance personnel should be notified and recorded. Fill in the shift record carefully when transferring shifts.

The above are the ten precautions and work details during the operation of the slitting line. I hope it will be helpful to everyone in the future operation process.

Professional Inspection Process

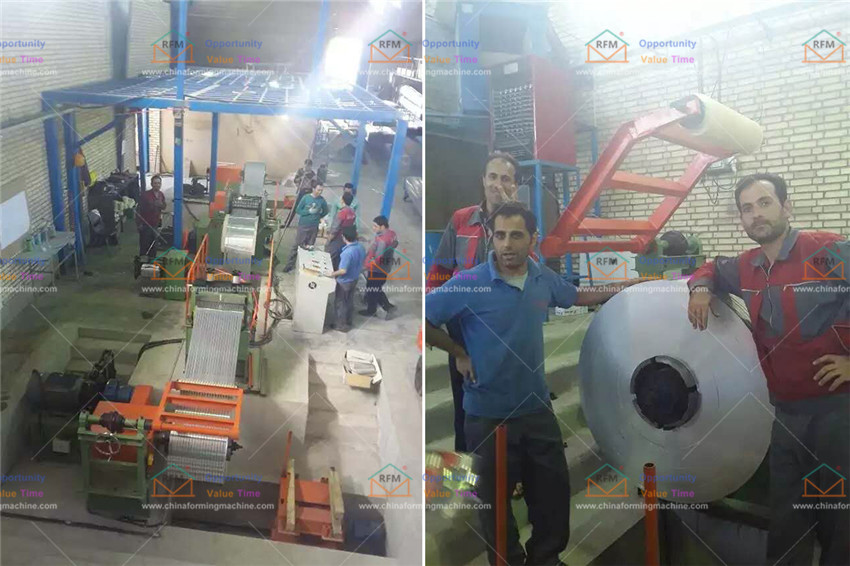

Customers’ Application Projects

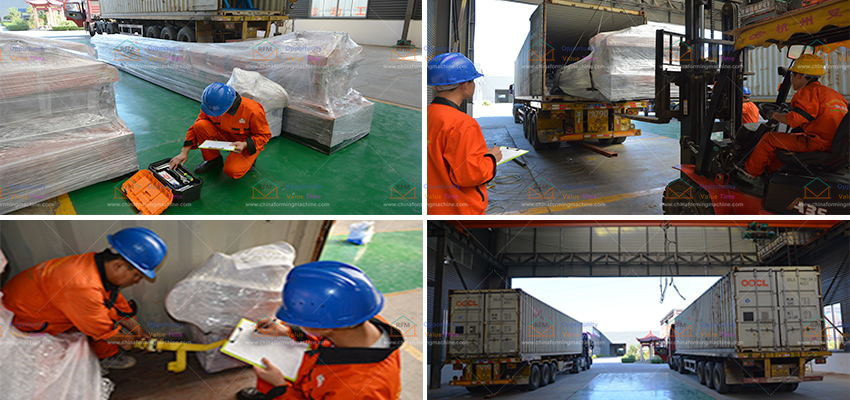

Inspection/Package/Deliver

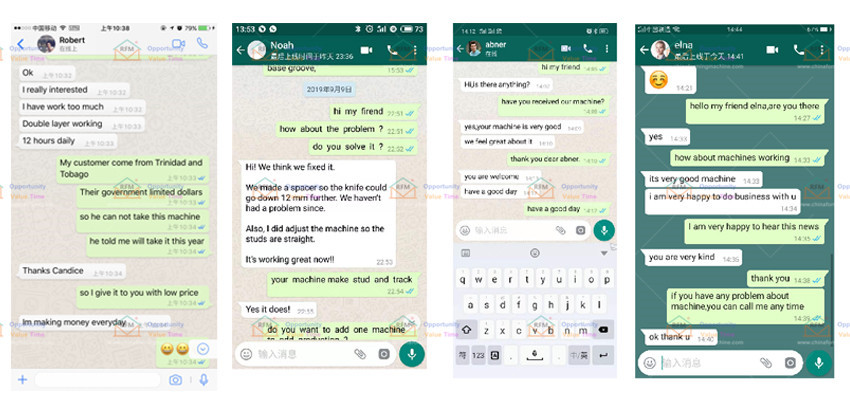

Customer Feedback
