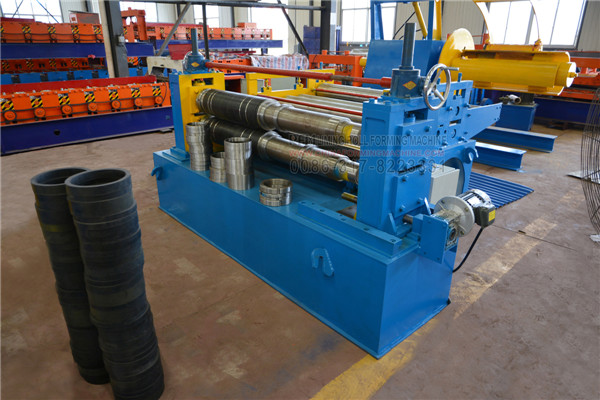

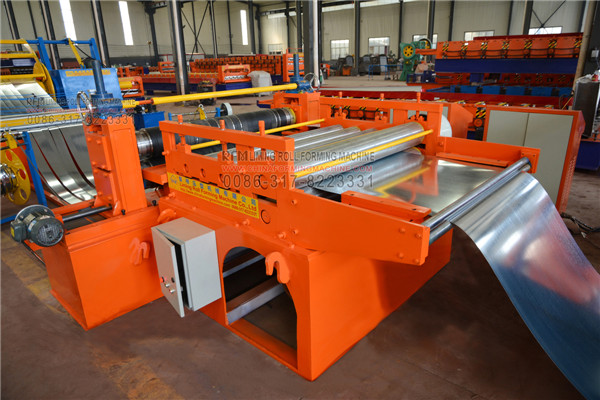

Slitting line called slitting,
slitting machine, cutting machine, scissors, mainly for tinplate, galvanized
iron, silicon steel, cold-rolled strip steel, stainless steel, aluminum, steel
and other reel slitting shear. Metallic material cut into a desired volume of various widths
of strip, then the strip have small volume for next procedure, transformer,
motor industry and other precision metal strip shear necessary equipment.

The kind of slitting
line

1. Press Slitting thickness, divided
into sheet slitting line (processing thickness 0.1-3.0mm), thick plate slitting
line (processing thickness 3.0-6.0Mm).

2. Press the slitting of metal, can be
divided into copper strip slitting line, stainless steel slitting line, cold plate
Slitting Line, Silicon Steel Slitting Line, Tinplate slitting line.

3.Press the degree of automation can
be divided into fully automatic slitting line, semi-automatic slitting line.

Main technical
parameters

1. Cut
material: silicon

2,
cut material width: 1250mm,

3，cutting material thickness:
0.1-3.0mm

4, the maximum reel diameter: Φ1800mm

5, unwinding sizing range:Φ460 ~
520mm \ 570 ~ 610

6, maximum roll weight: 7T

7, the maximum shear line speed: 200m
/ min

Process

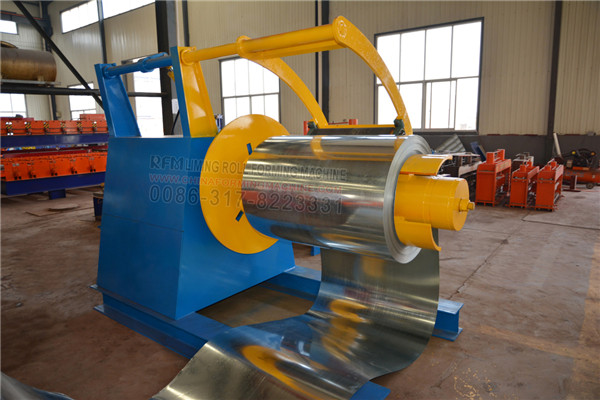

Feeding small car material – uncoiler

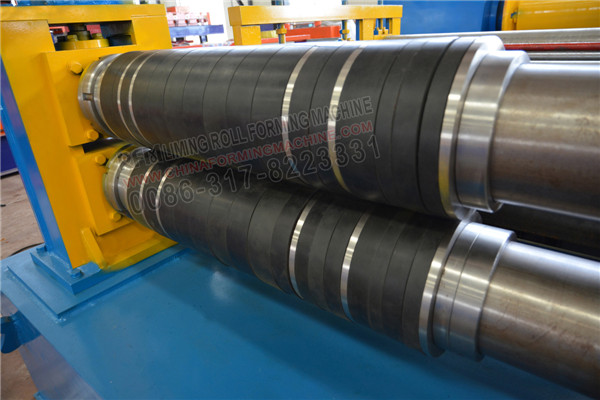

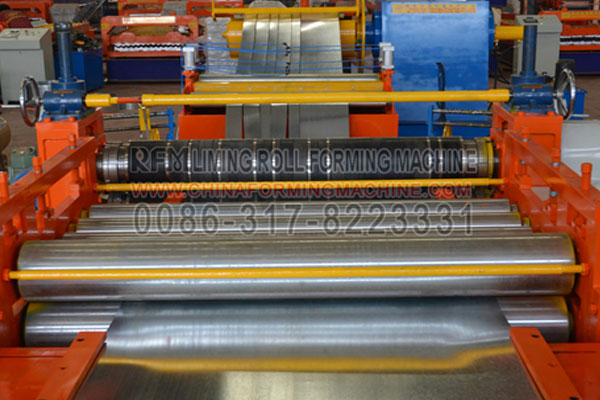

uncoiling – a rack – open-book material storage pit – circular shears slitting
– Waste collection agency side – Transition frame — tension mechanism –
Winder – unloading car – hydraulic components – electrical control system.
