Roof tile pressing equipment is mainly used in urban buildings, such as warehouses, walls of special buildings, and protective structures. The characteristics are light weight, rich colors, classical elegance, easy to install and maintain, waterproof and fireproof ability.

Main technical parameters of roof tile press equipment:
Passive feeding: manual tightening, passive feeding
Unloading frame load: 4T
Rack: 300H steel welding
Forming machine form: wall plate chain drive, wall plate thickness 18MM
Shaft diameter: ￠70㎜
Chain: 1 inch single row
Motor power of forming machine: hydraulic motor drive, motor power 11KW
Linear speed of forming machine: 0-4m/min
Number of molding machines: 14
Roll material: high-quality 45# steel forged parts, chrome-plated surface
Cutting method: hydraulic shear
Molding scissors material: Cr12
Shear blade heat treatment: HRC58°-60°
Rolled thickness: 0.5MM

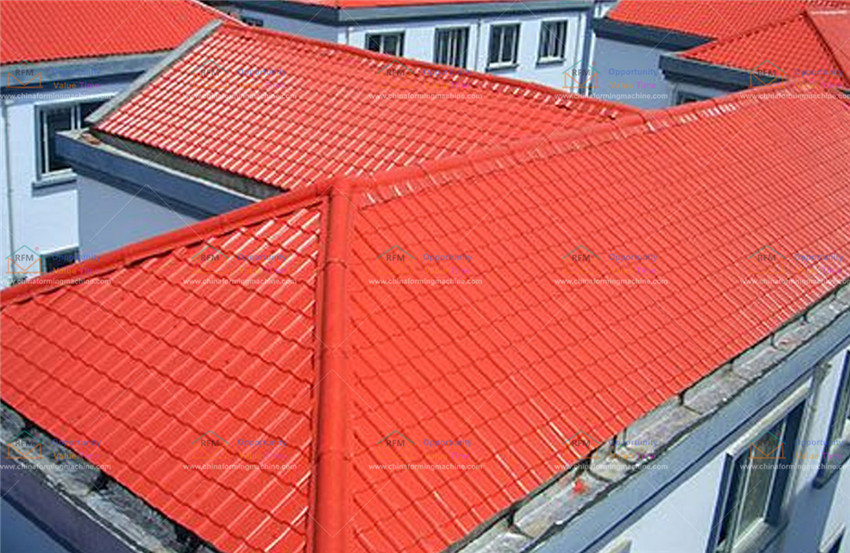

Application Range & Scene

Provide Installation Method & Customized Profile For Free

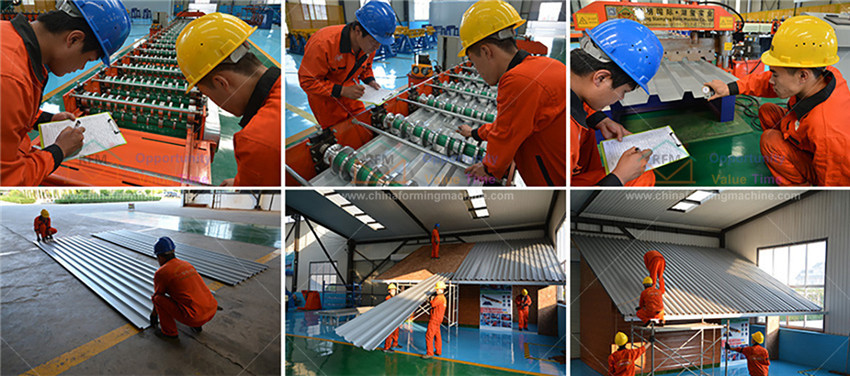

Professional Inspection Process

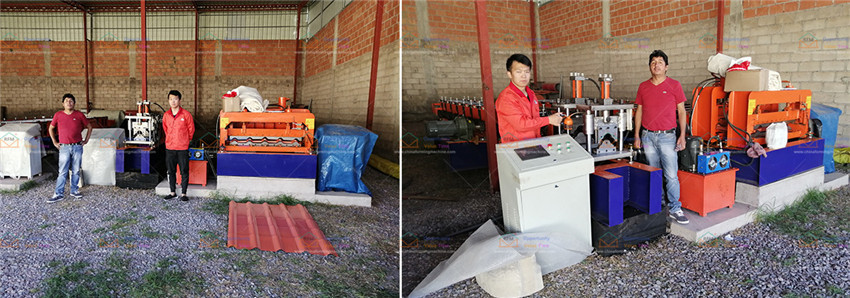

Customers’ Application Projects

Inspection/Package/Delivery

Customer Feedback
