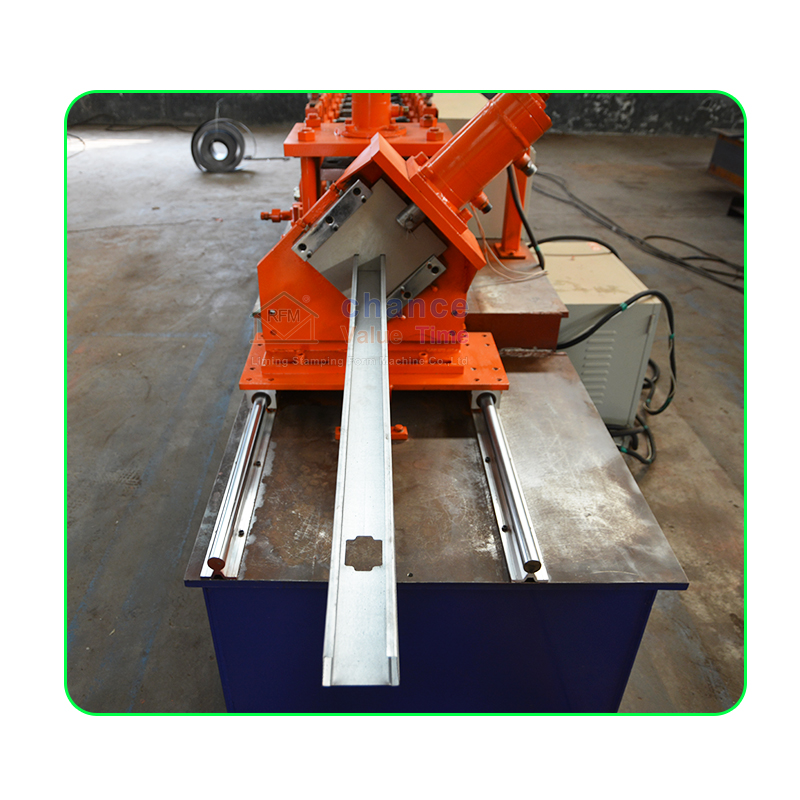

Metal Steel Stud and Track Drywall Profile Roll Forming Machine
The metal steel stud and track drywall profile roll forming machine is an advanced piece of equipment designed for manufacturing drywall partition profiles, such as U channel and C stud. It ensures high precision, uniform shape, and smooth surface finish—ideal for modern lightweight steel construction projects.
This machine automatically feeds, forms, and cuts profiles according to preset sizes, allowing mass production with minimal manual intervention. It is widely used in construction, interior framing, and partition systems.
Main Features
-

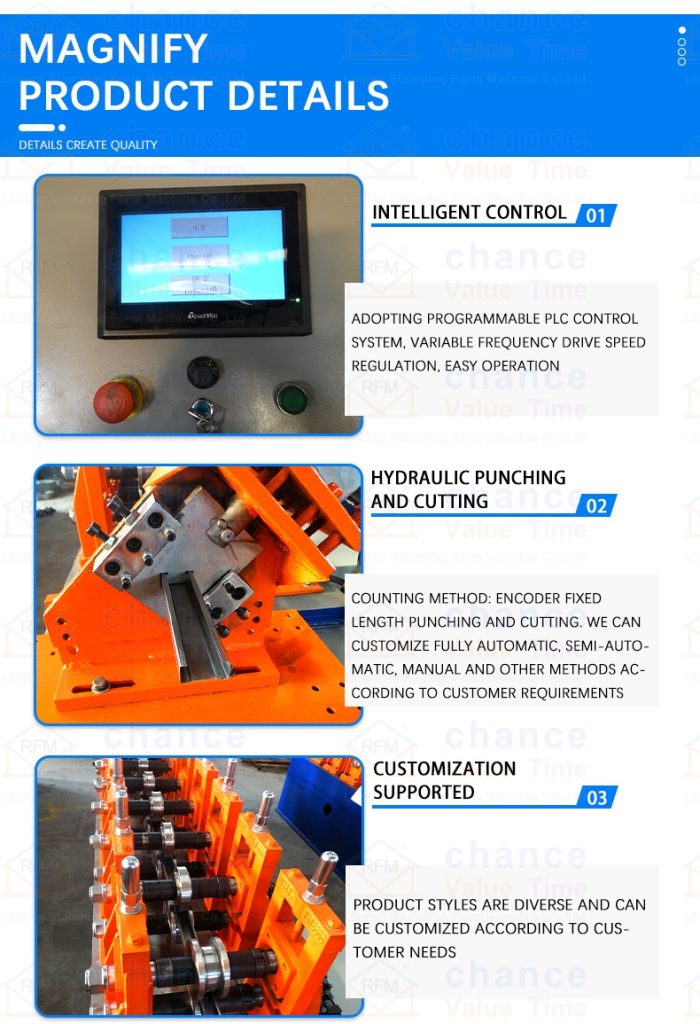

Automatic Control System (PLC + HMI): Easy operation and stable performance.
-
High Speed & Accuracy: Up to 40m/min with precise cutting tolerance ±0.5mm.
-
Durable Rollers: Made from high-quality Cr12MoV steel, hardened and polished.
-
Quick Change Design: Easily switch between stud and track sizes.
-
Compact Layout: Saves space and reduces installation cost.
Technical Parameters
| Item | Specification |
|---|---|
| Material | Galvanized Steel, 0.4–1.2mm |
| Forming Stations | 12–20 |
| Main Power | 7.5–15 kW |
| Cutting Type | Hydraulic or Servo Flying Cut |
| Control System | Panasonic / Siemens PLC |
| Speed | 20–40 m/min |
Applications
The drywall stud and track forming machine is perfect for producing interior partition frames in commercial buildings, offices, and housing projects. It helps replace traditional wooden framing with durable and fireproof steel systems.
Why Choose Us?
With 29 years of roll forming expertise, Hebei Liming Stamping Form Machine Co., Ltd. offers customized production lines, on-site installation, and lifelong service support. We have supplied machines to over 50 countries, including Brazil, Russia, Egypt, and Italy.
