sanwich panel production line

Multifunctional

color steel insulation composite board production line parameters



1. Power:

380V / 50-60HZ



2. Total

power: 31.4KW



3.

Production line speed: 0-4m / min

4.

Equipment dimensions Foam machine: 45000 × 3000 × 2800; Yanmian machine 50000 *

3000 * 2800

5.

Product width: 1000mm / 1200mm



6.

Product thickness: 50-300mm



7. Annual

production: 600,000 square meters



8.

Equipment Model: 950,960,980 color steel sandwich composite panel equipment.



Foam

composite board production line Features:



1. Foam

composite plate production line production Caigang meet the sandwich socket, H

board;



2.

Corrugated sandwich panel production can be configured with a variety of

corrugated interface;



3. Can be

used for EPS or rock wool, insulation cotton sandwich panel production;



4. Hidden

buckle wall panel production can be equipped with a variety of hidden interface

and plate type;



5. Can achieve

continuous automated production;



6.

According to customer needs to produce special version type;



7. Foam

composite board production line of various functions according to the actual

needs of customers flexible configuration;

8. The

production line using programmable logic controller, with the touch screen

man-machine interface;

9. Easy

to operate and reliable, with automatic fixed length, automatic integration

function;

10. Foam

composite board production line with perfect supporting equipment.



Foam

sandwich panel production line is a new type of building materials dedicated

production equipment, its main function is the color steel composite in the

thick, lighter core material EPS (polystyrene / foam) board or rock wool board.







Foam composite

board machine can produce EPS plate, EPS mouth board, EPS corrugated board,

rock wool flat, rock wool mouth plate, rock wool corrugated board and other six

kinds of plate.







Multifunctional

color steel insulation composite board production line is the production of

Color steel sandwich panels of the main equipment, color steel sandwich panels

with high strength, light weight, durable, beautiful appearance of a new type

of building materials. Foam composite board production line construction is

convenient, short duration, is widely used industrial plants, large

supermarkets and warehouses, large span roof and wall, assembly of various cold

storage, clean room, air conditioning room.

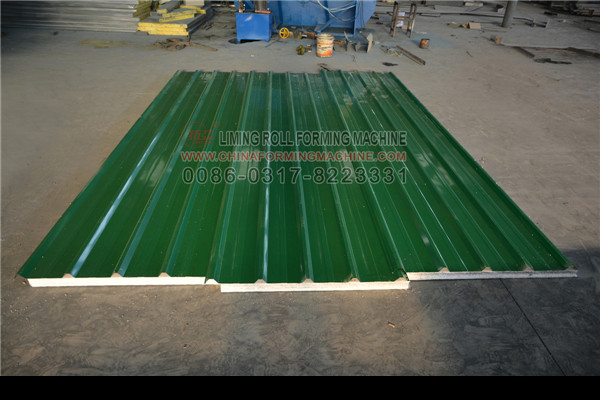

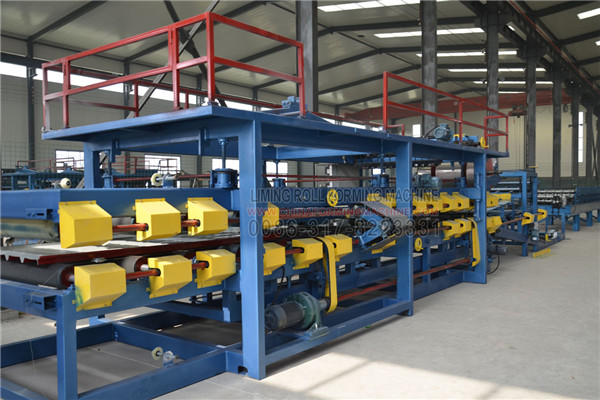

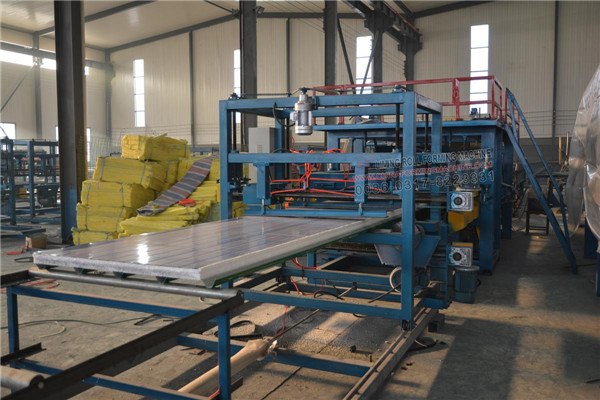

(Photo7.8)







Pls

contact with me if you want it.
