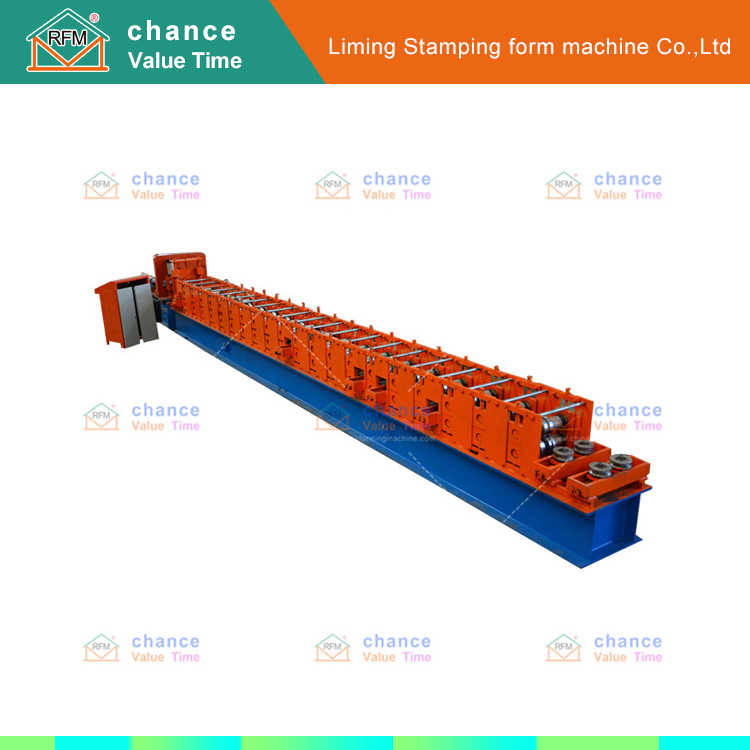

Multi-system combined photovoltaic bracket forming machine

In 2022, the solar photovoltaic bracket forming machine is a hot-selling machine at home and abroad.

The photovoltaic supports produced by the multi-system combined photovoltaic support forming machine are of high quality, strong stability, and are not easy to corrode and bend. It is in line with my country’s policy of advocating the use of clean energy and making full use of renewable natural resources.If you want to collect solar energy, you need to install the photovoltaic support in a wide sunny outdoors, and save the collected energy through solar panels. This requires the material of the solar photovoltaic bracket to have the characteristics of corrosion resistance, high temperature resistance, and strong support.

The photovoltaic brackets produced by the solar photovoltaic bracket forming machine use raw materials of carbon steel and stainless steel. The surface of the material has been hot-dip galvanized to prevent oxidation and rust. The characteristics of stability, long life and high temperature resistance solve the damage of photovoltaic support caused by exposure to sunlight. The solar photovoltaic bracket has no welding, no drilling, can be adjusted, and can be reused, which avoids material waste and saves production costs.

The solar photovoltaic bracket forming machine can manually adjust or change the production requirements of multiple sets of different specifications of the rolls, and the roll molds can be processed by CNC lathes. The production process is quenched at high temperature, and the Cr12 material die wheel is processed by fine, fine grinding, and plating. The roller has good wear resistance and long service life.

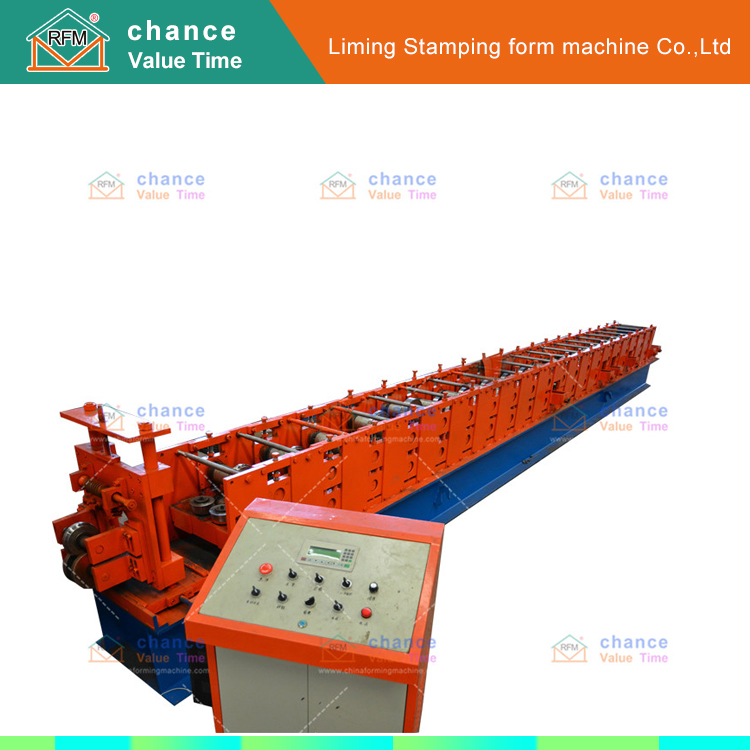

The solar photovoltaic bracket forming machine can be controlled through the electrical control cabinet, and the parameters of length and quantity can be set optionally. The solar photovoltaic bracket forming machine is automatically operated by an industrial PLC control system, and the processing thickness and forming size of the solar bracket forming machine conform to international standards.

If you are interested in the multi-system combined photovoltaic bracket forming machine, you can visit the solar photovoltaic bracket production line in Liming Factory. The machines produced here are not only high quality but also reasonably priced and are one of the hottest machines of 2022. We will also provide free installation diagrams for easy installation and use.

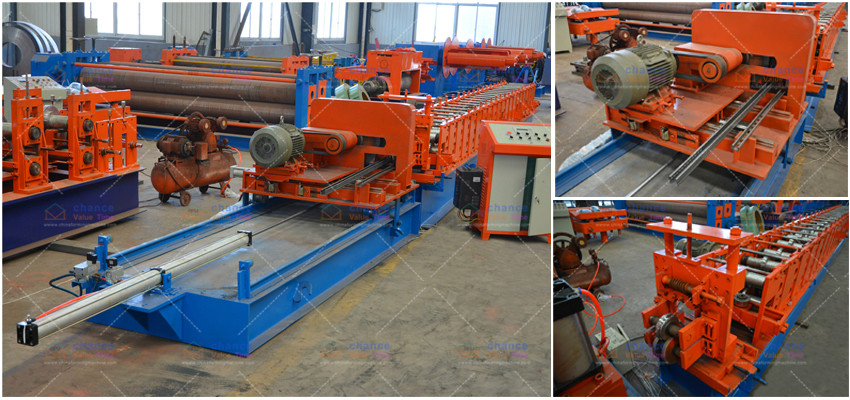

Solar photovoltaic bracket machine assembly equipment

The solar photovoltaic bracket forming machine is composed of manual uncoiler, leveling device with automatic feeding system, punching system, roll forming system, hydraulic cutting system, PLC computer control system and hydraulic pump receiving plate and other systems.

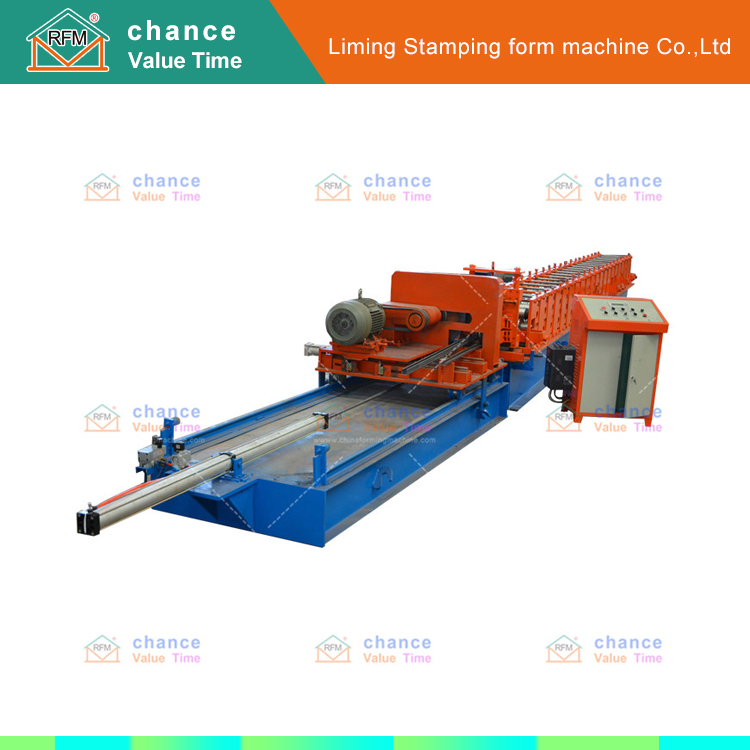

Operation of photovoltaic support machine

Solar photovoltaic bracket forming machine:
1.Control system: PLC computer control system
2.Processing thickness: 2mm-2.5mm
3.Suitable material: galvanized steel

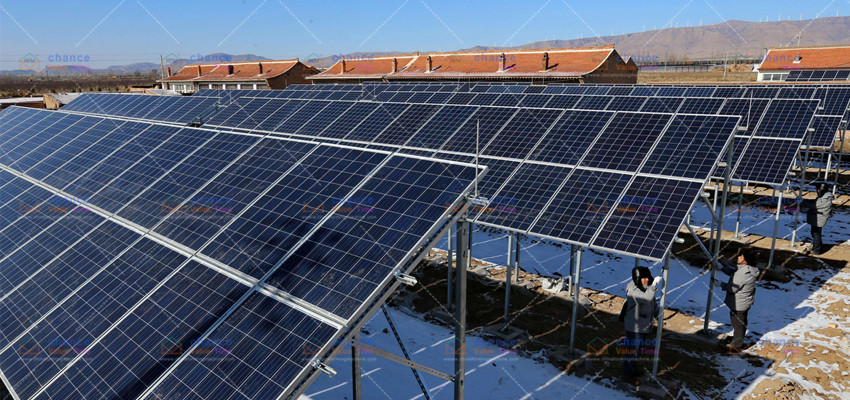

Applied Photovoltaic Mounts

Site conditions for installing solar photovoltaic brackets:
1. Choose a wide area, facing the sun, to ensure that there is sufficient sunlight.
2. When installing the photovoltaic support, the components need to be closely combined and natural factors such as wind force should be considered.
3. Check the stability of the photovoltaic support, which can fully support the solar panel.

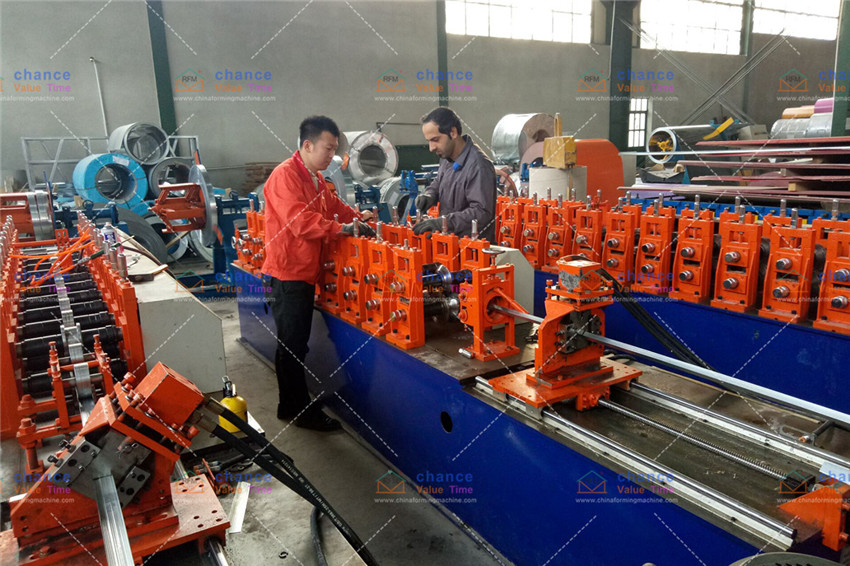

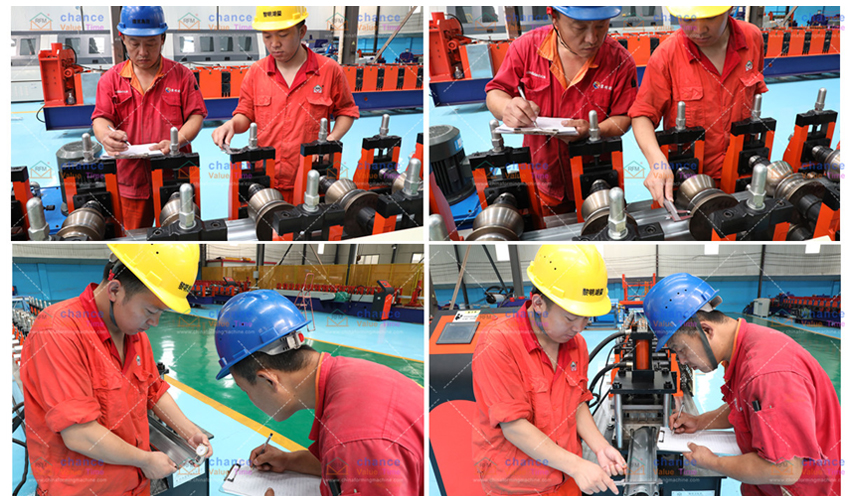

Layers of professional quality inspection

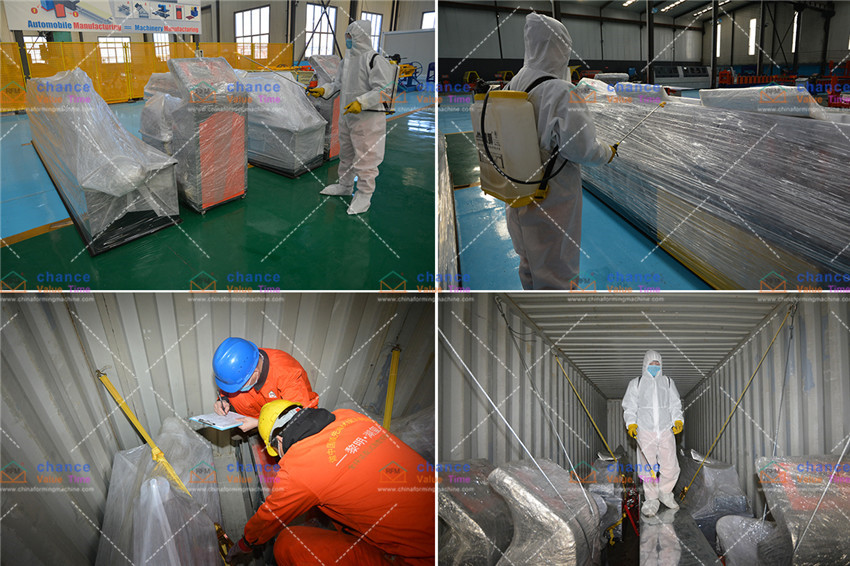

Pack and load
