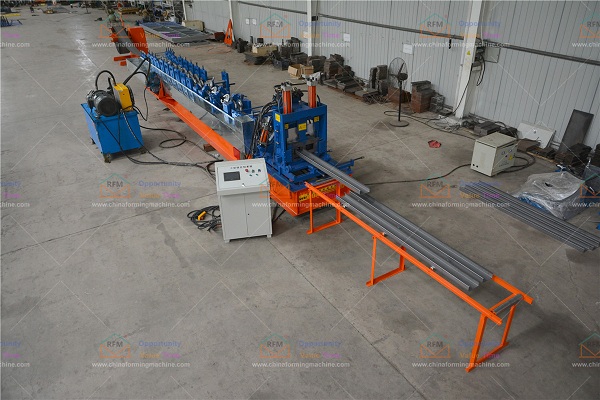

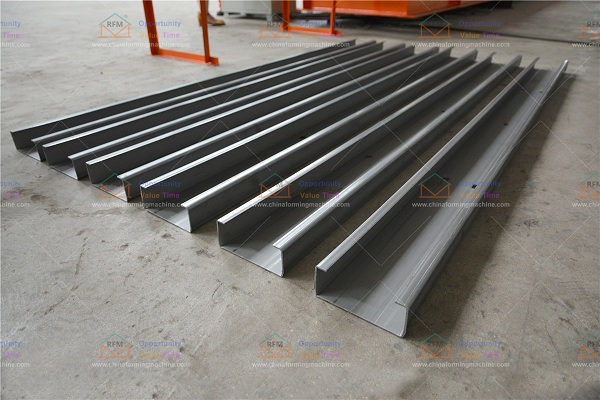

C-type steel tile press is a single-roll forming unit that can produce a variety of C-type purlin products with a set of rollers. The machine is mainly composed of passive loading rack, leveling device, punching device, cutting device after forming, hydraulic station, computer control system, etc. The improvement process can be completed in four steps.

The first step is to improve, adding a hydraulic punching machine with side holes, which can punch four holes at a time, and the flying saw is cut from the middle to form the head and tail sides of two adjacent sections of C-shaped steel. hole.

The second step is to improve the requirements of the new C-shaped steel to make double holes in the middle of the profile. Change the position of the 4-hole punching die of the side hole to the position of the 2-hole die. Modify the procedure of the hole punching position so that the side hole punching equipment can be Double holes are punched in the middle, and the hole distance is set by the user, and 8 sets of double holes can be punched.

The third step is to improve, and add a hole punching device, punching out the hole at the interval set by the user during the strip pressing process, and it can punch 16 holes.

The fourth step is to improve the length measuring device and flying saw. When the pressing length reaches the set length, the flying saw will act to automatically cut the profile.
