Hydraulic

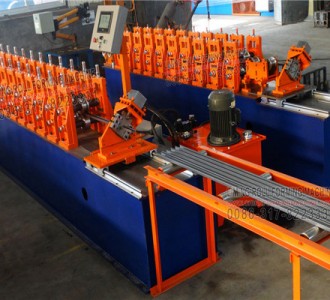

80-300 C purlin roll forming machine technical parameters

1, frame:
400H steel

2, the
plate: 18mm thick

3, chain,
sprocket: 2 inches

4,
Shaping axis: 11 rows, all 45 # steel solid shaft, diameter Φ80

5, the
wheel: bearing steel heat treatment, quenching hardness: 58 °

6,
bearing type: 6213 type

7,
bearing box: 150 * 130

8,
automatic strip: double roll

9, platen
thickness: 1.5-3.0mm

10, motor
power: 11 kW, planetary cycloid reducer

11,
C-beam equipment for model adjustment method: external adjustment

12,
pressure wheel thickness: 30mm, diameter Φ400

13, 6
side wheel positioning, leveling 2 row side wheel positioning, a tune waist
high, a tune side,

14,
hydraulic power system components are used domestic famous brand products,
external power source easy maintenance, operation

Pls
contact with me if you want it.
