Automatic
arching machine according to production needs to produce a variety of different
appearance of the roof panels, and high yield. Colored panels vault colorful building,
smooth lines, can increase the color of buildings, beautify the city style. Can
be built for different purposes and buildings, but also in the arch between the
two buildings, but also in the existing upstairs layer, both to solve the
problem of water and increase the use of space. No beams Liang Tan, the space
is spacious, you can freely split the portfolio, easy to use.

Fully
automatic armature production of products with light weight, high strength,
heavy load, good seismic characteristics, archer is widely used in
multi-high-rise steel construction field. Vaulted roof of the building
features: No beams without sandalwood, open space, can be freely split
combination, easy to use. Light weight, strong steel, good elasticity, superior
seismic performance. Mechanical seams lock, airtight, saving time and improve
efficiency. Reasonable force mode, reserve security, can withstand large wind
loads and shocks. A variety of design styles, adaptability, both downtown or
remote town, economical and beautiful.

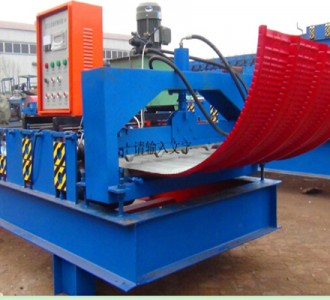

Hydraulic
arch machine technical details:

1. Motor power: 3KW

2. Shaping axis: diameter 70mm 45 # quenched
and tempered

3. Forming Wheel: Material 45 # steel forged
hard chrome plating

4. Transmission: chain sprocket

5. Compressible thickness: 0.20-0.8mm

6. Shape: 3800 * 1300 * 1200

7. Into the board width: 1000mm Model: forming
board 840mm

8. Forming speed: 5-8m / min

9. Weight: 1.5 (t)

10. Control System: PLC computer control

11. Shear system: automatic hydraulic shear

Pls
contact with me if you want it.

Liming
Stamping Form Machine Co.,Ltd

Address:No
3 Road, Industrial Development Zone, Botou City,Hebei Province, China

Wechat/Whatsapp:+86-18831701987 TEL:0086-317-8223331

QQ:
2880998756 SKPYE: limingywj008

Trademanger:
cn200079653
