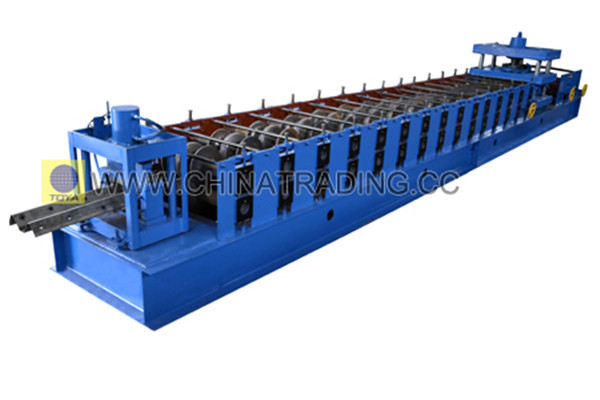

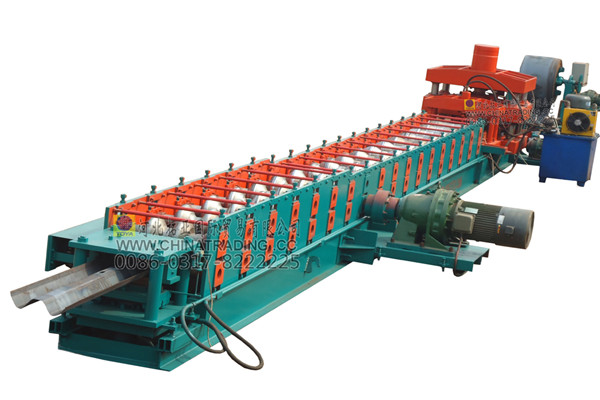

Highway Guardrail Roll Forming Machine

2020-06-07 0 News, Technology information

Highway
guardrail roll forming machine

Technical
Parameters:

First,
loading

1, single
head decoiling machine, single side discharge

2, using
automatic hydraulic tensioning

3, the
maximum loading weight: 8000KG

4, the
maximum loading diameter: 2200mm

5,
hydraulic power: 3KW

6,
cylinder diameter: 120mm, working pressure 10Mpa

7, the
maximum loading width 500mm

Second,
forming

1, the
material into the unit guide wheel

2,
leveling for the next three rollers under the four rollers, forming shaft
diameter Φ80mm (material 45 # through the conditioning process), the roller
material is GCR15, quenched to HRC58 ° -62 °, the surface of hard chrome
plating, pressing thickness 2.5m-3.0 m.

3,
punching: the use of hydraulic punching (material Cr12 die steel quenching, can
be adjusted before and after the left and right)

4, cut
off the hydraulic shear (material Cr12 quenching HRC60-62)

5, the
host power: 15KW

6,
Cycloid reducer power: 15KW

7,
transmission: chain drive, 2 inch single row chain

8,
hydraulic station motor power: 15KW, pressure 20Mpa

9. The
unit adopts frequency conversion speed regulation 5m-12m/min

10.
Inverter, Delta

11, the
computer uses Delta PLC

12.
Computer operation panel adopts touch screen display

13,
equipment dimensions: length 17.5m × width 1.2m × height 1.5m

14,
electrical origin, the brand can be optional.
