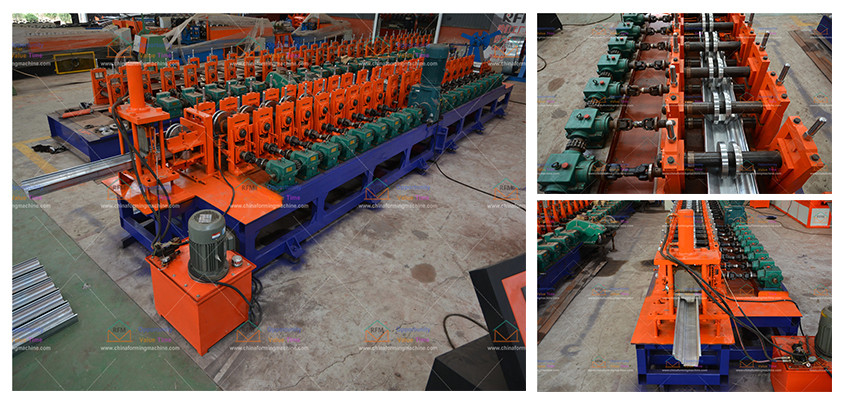

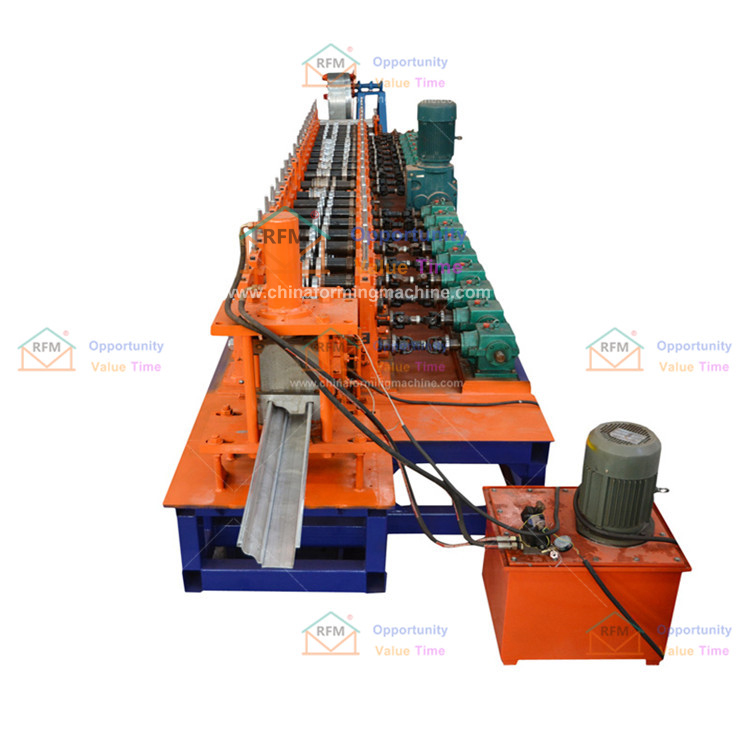

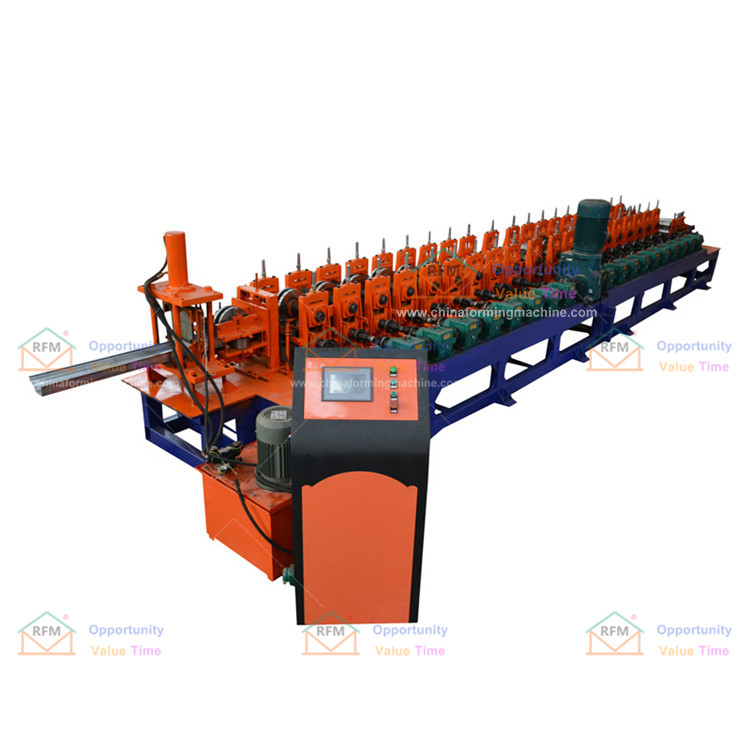

Square downpipe rain pipe rolling forming machine is designed to make the rain pipe in batch fully automatically.

For this gutter machine, we take guide column frame style to make machine for making sure machine working speed and steady. And for the transmission, we will use gearbox with chain.

We are specialized manufacturers gutter machine, Downspout Roll Forming Machine, Water Gutter Metal Sheet Forming Machine.

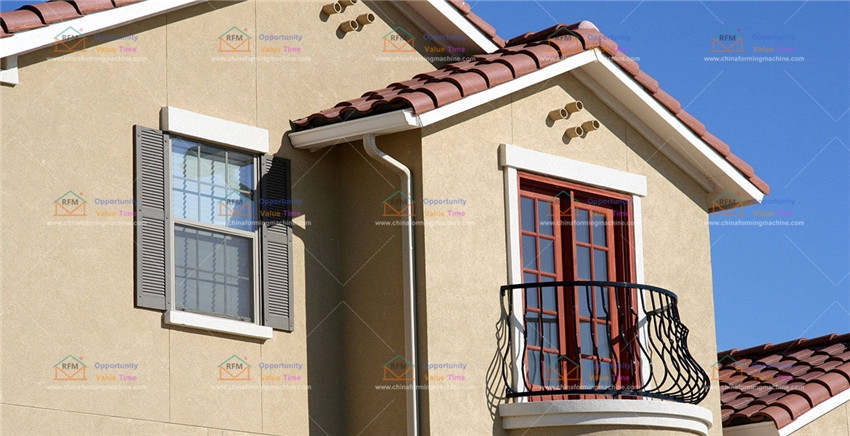

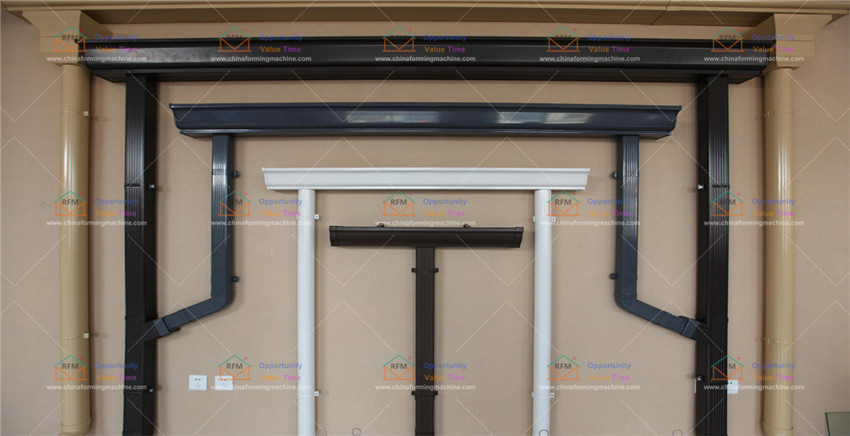

Automatic round water down pipe machine or water downspout roll forming machine are used to provide the water system for buildings. Gutter downspouts are vertical pipes that are used to divert rainwater away from a building’s foundation.

Click to watch the video

LOCKHEER gutter machine have the following styles of downspouts machines to choose from:
1. Rectangular Downspouts forming machine
2. Plain Round Downspouts forming machine
3. Round Corrugated Downspouts forming machine
4. Spiral Downspouts forming machine

Technical Parameters of Downpipe Roll Forming Machine:
* Uncoiler: Manual Uncoiler
* Inner diameter: 508mm
* Outer diameter: 1200mm
* Loading weight: 3T
* Thickness of Material: 0.4-0.6mm
* Rolling Stations: 22 stations for square pipe and 26 stations for round pipes.
* Forming Speed: 10-15m/min. (not including cutting)
* Diameter of Shaft: ¢70mm
* Transmission: by chain-brackets
* Main Power: 7.5KW
* Weight of the machine appro.6 Tons.
* Cutting Type: Hydraulic cutting for rectangular downpipe and Flying Saw Cutting for Circle downspout
* Hydraulic Power: 4KW
* Material of cutter blade: Cr12 steel with quenched treatment.
* Cutting Length and Quantity: Clients can set the required length and quantity on the PLC touchscreen
* Electrical System for Rectangular Downspout Roll Forming Machine
* Panasonic PLC Control System and Omron Encoder;

Main parameters for downspout Elbow machine:
* Type of controlling: adopt strong electric controlling
* Main motor power: 2.2kw
* Max curving angle: 90 degrees.
* Functions: curving and biting
* Curving speed: 0-15m/min
* Dimension: 1300*650*1500mm

The Downspout profile is not fixed. Most of time, we are especially manufacturing machines according to different technical requirements.
