Full automatic c channel steel frame cad roll formingmachine is based on strip as raw material, through continuous cold-rolled forming, the production of complex cross-section profiles (products: steel keel, paint keel, keel, Etc.) and different specifications of the cold-formed, paint unit equipment, the use of PLC control.

Full automatic c channel steel frame cad roll formingmachine:

1. Device control for the PLC control, in the normal production of multiple security protection system.

2. Bed for the steel plate welding parts. And tempering treatment, to eliminate internal stress, to avoid the deformation of the fuselage.

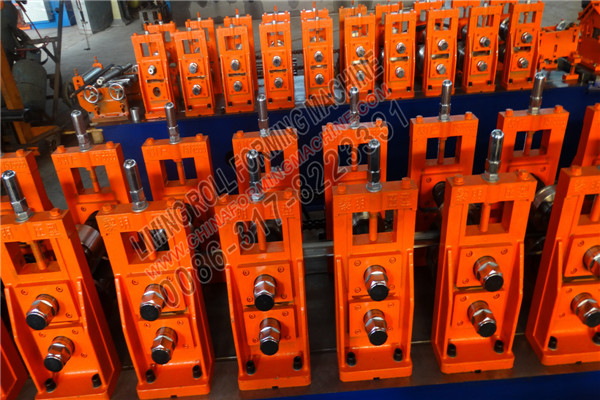

3. Forming frame for the cast iron structure, and by tempering. High strength, long service life.

4. Roller shaft material is 40Cr, and after quenching and tempering, hardness HB280.

5. Molding material for the GCr15, quenching, hardness: HRC56-62 ℃.

6. Transmission structure for the gear box drive. Each molding frame has a light steel keel machine. Can ensure that equipment over time, high-intensity operation, and long service life.

Light keel roll forming machine processing technology: discharge —- guide straight —- —- —- rolling forming cut-off

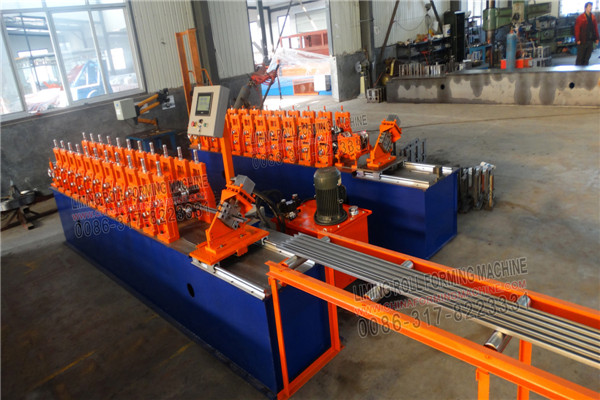

Full automatic c channel steel frame cad roll formingmachine components: discharge machine, guide rack, forming the host, calibration device, cut off part of the length, the receiving station, electrical control components and so on.

if you need the Full automatic c channel steel frame cad roll formingmachine

, pls contact with me . I can provide any profile sheet roll forming machine .
