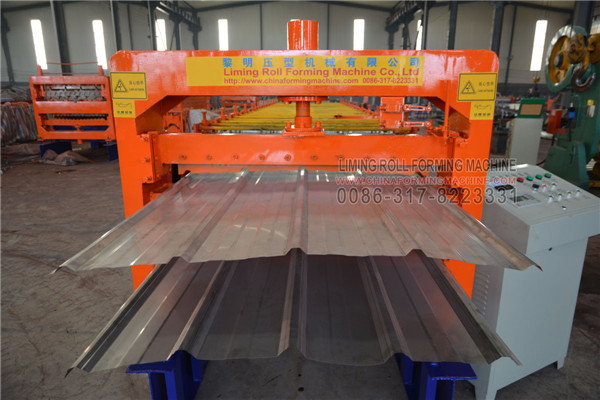

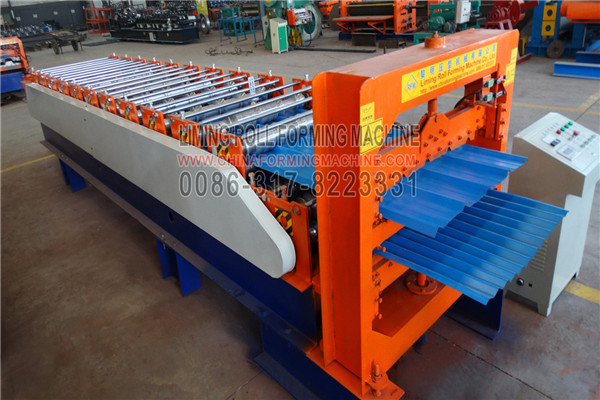

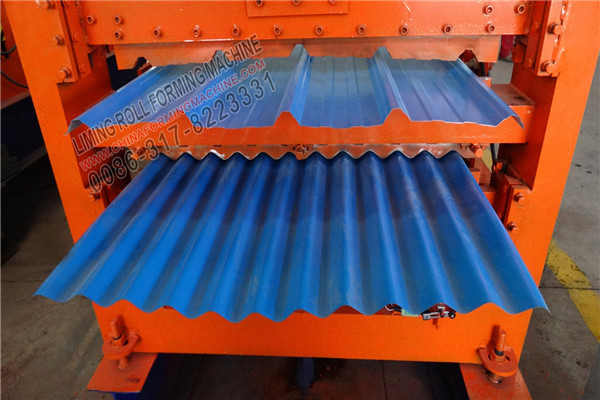

This
double-layer automatic color steel plate pressure roll forming machine can

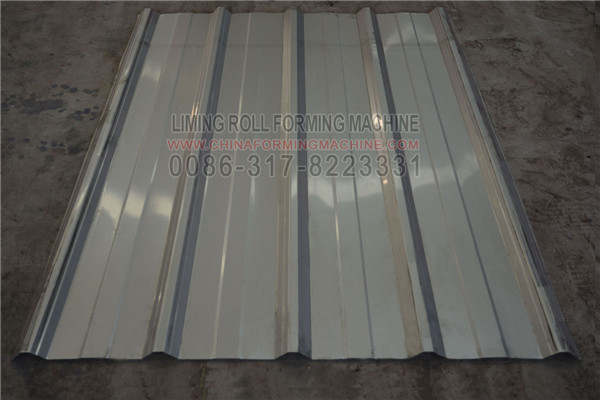

simultaneously press two different types of color steel tile plate, to produce
the plate can be adapted to color steel activity room construction, workshop
plant and other housing.

The
machine adopts high precision industrial controller, automatic roll forming,
automatic measurement length, precision length, automatic cutting shear section
neat no burr easy to install.

product
details

Host
power: 8KW

Product
Name: Double color steel plate pressure machine

Production
mode: automatic PLC computer control

Dimensions:
7500 * 1800 * 1500

P L C:
High precision industrial controller

Shear
blade material: shear knife with Cr12mov material, made by high temperature
quenching

Cut the
way: automatic measurement length, length, hydraulic shear

Number of
rows: 13 + 12 rows

Transmission:
high frequency plus hard gear + high strength chain

Production
speed: 10-15m / min

Roller
material: Cr12 fine car, fine grinding, plating hard network

Processing
plate thickness: 0.2-0.8 can be customized

Processing
materials: color plate, galvanized sheet, aluminum and so on

Equipment
components: raw materials open-book stent, steel forming host, hydraulic
system, computer control system, finished sheet automatic cutting device,
finished sheet material picking station.

Order:
buyers and sellers signed a purchase and sale contract, the purchase of goods
and configuration specified in the contract, the company signed the contract
terms for delivery.

Tips:
special material or sheet thickness, according to customer requirements custom
machine.

Pls
contact with me if you want it.
