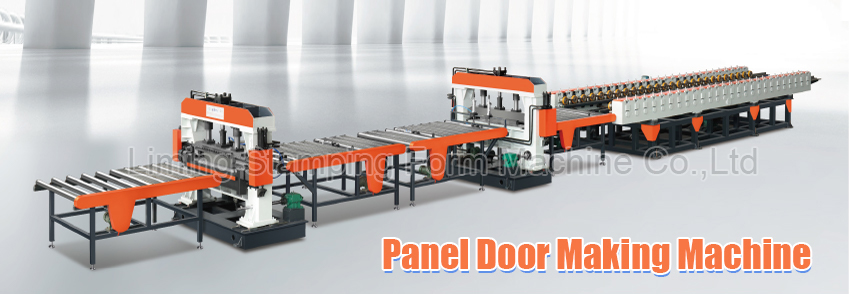

Fully automated internal and external door panel production line

Fully automated internal and external door panel production line

Production process of fully automated internal and external door panel production line

Uncoiling-leveling-fixed-length shearing (flattening and cutting the raw materials to a fixed length)

Sheet material-hydraulic embossing (punch the raw material out of the pattern)

Automatic feeding-CNC punching-roll forming-automatic folding head-splicing

Vulcanization transfer printing (printing the pattern of the security door onto the finished product)

Conveyor belt welding small parts manually (welding small parts needed on the door panel, such as hinge reinforcement plates, etc.)
Automatic glue spraying on conveyor belt (pre-spray glue on the back plate)
Insert the filler manually (the honeycomb paper in the door panel is filled)
Automatic flip buckle and manual spot welding
Fully automatic hydraulic gluing machine for gluing

The door panel production line has a high degree of automation. After the embossing is completed, the entire production line basically does not require manual intervention. The punching position and the width of the door panel can be adjusted according to the setting, and the machine can automatically adjust. People without operating experience can also produce and follow-up welding. And the glue spraying is completely completed on the assembly line. We can lay out the workshop according to the customer’s workshop and flow your entire production line to maximize production efficiency. At the same time use the least labor.

In the entire production process, manual welding of small parts and spot welding is required to fix the door panels, and the rest only requires manual inspections. This production line reduces labor to a minimum.
