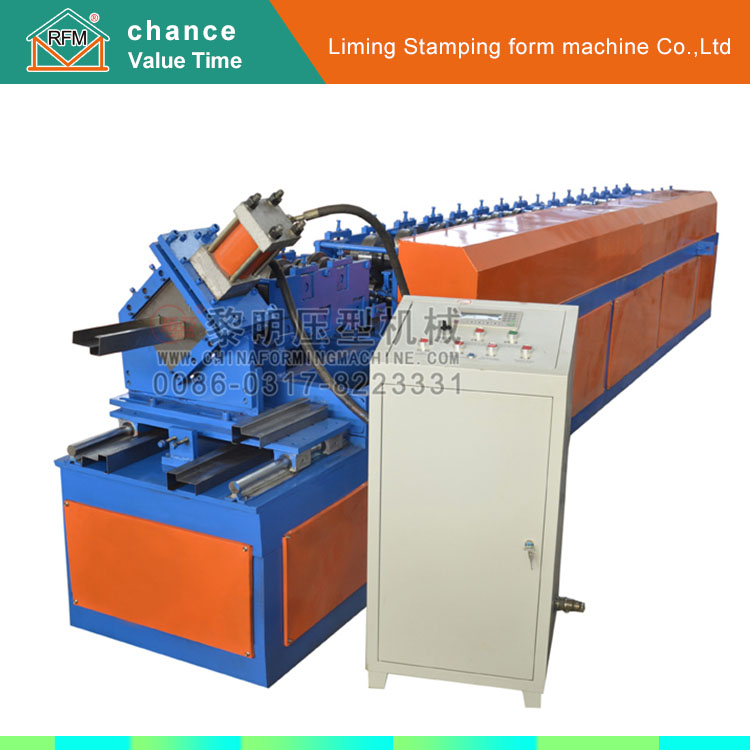

Door Frame Forming Machine — China Forming Machine Manufacturer

How is the door frame produced?

How to install the door frame？

1. Check the door specifications, opening direction, and related accessories according to the design drawings.

2. Measure the height and width of the door opening with a tape measure. The standard height and width of the door is 200cm×80cm; the height and width of the bathroom door is 200cm×70cm. If there is any discrepancy, please correct it in time.

3. Measure the position line to determine the position of the door frame, use the ink fountain bomb to pull out the vertical line, two vertical lines on one side of the door hole.

4. Drill holes on the vertical line with an impact drill. The distance between the holes and the holes is about 30cm, and there are 10 holes in two rows on one door. The drill bit of the percussion drill should be 12mm, and the drill hole depth should be about 6cm.

5. Nail the small wooden wedges into the holes one by one with a hammer to fix the door frame panels. The size of the small wooden wedges is 5cm×1.5cm×1.5cm. It is better to be made of larch, because the wood structure of larch is tight and not easy to loosen.

6. Cut the material to make the door frame. The size of the wood board on the left and right sides of the door frame keel is 200cm×3cm×8cm, and the size of the wood board on the top keel of the

door frame is 80cm×3cm×8cm. Glue the high-density nine-centimeter board to the keel, and then fix it with air gun nails.

7. Connect the three finished door frames according to the shape of the door, and fix them at the joints with big nails.

8. Use a plane to smooth the surface of the connected door frame, trim the corners, and make the edges and corners distinct.

9. Put the door frame on the door hole, according to the horizontal line of the wall, padded the door frame with wood or bricks, and adjust the height of the door frame. Reserve 5cm below to be buried in the keel of the floor.

10. Nail a nail on the top of the door frame, hang the line down, adjust the verticality of the door frame through the line down, and fix the door frame on the door hole with twist nails while measuring.

11. Make the lines of the door face. The door face can be bought ready-made or made by the construction staff according to the drawings. After the production is finished, fix the door face to the door frame, so that the door cover is basically completed.

12. Put the door on the door cover and make a good sign, determine the specific position of the hinge on the door cover, and then cut the outlet diameter according to the thickness of the hinge. Also cut out the caliber of the lock sleeve. Install the door on the door cover, and tighten the screws on the hinge with a screwdriver. Note that the gap between the door and the door cover should not be greater than 1.5mm, subject to smooth opening and closing of the door.

13. Remove the attachments and dust on the surface of the door cover, and then apply putty. Before applying putty, stick American paper between the door face and the wall to prevent it from sticking to the wall when spraying paint. Make sure to apply the putty evenly and repair the nail holes on the door cover.

14. Spray paint. The paint spraying effect will be more delicate, and the details can be brushed.

15. Install the lock on the keyhole, being careful not to damage the paint.

Mr. REX from India is the owner of a pressing machinery company in India. They sell various types of Door frames.
At present, the company wants to purchase a Door frame forming machine with precise and flexible dimensions to meet customers’ requirements for threshold dimensional accuracy. Improving the threshold dimensional accuracy can bring greater benefits to the customer’s company.

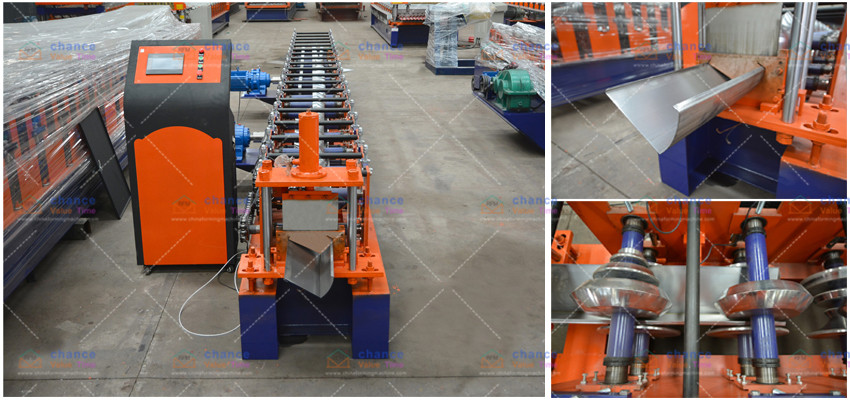

Mr. REX’s company is a large company in the cold-formed press machinery industry in India and has high requirements for product brands. Based on the customer’s requirements, the threshold cold bending machine we provided to him is carefully designed by our professional designer team.

The main electrical components used by the electronic control brand are German Siemens brands. All accessories are imported from original packaging and are made by our professional workers. Assemble to ensure the high-quality and high-configuration of the equipment, cooperate with the high-quality raw materials purchased by the company, and produce the threshold, accurate size and good quality. Satisfying customer needs and creating value for customers is our constant pursuit.



Door frame forming machine Application Range & Scene

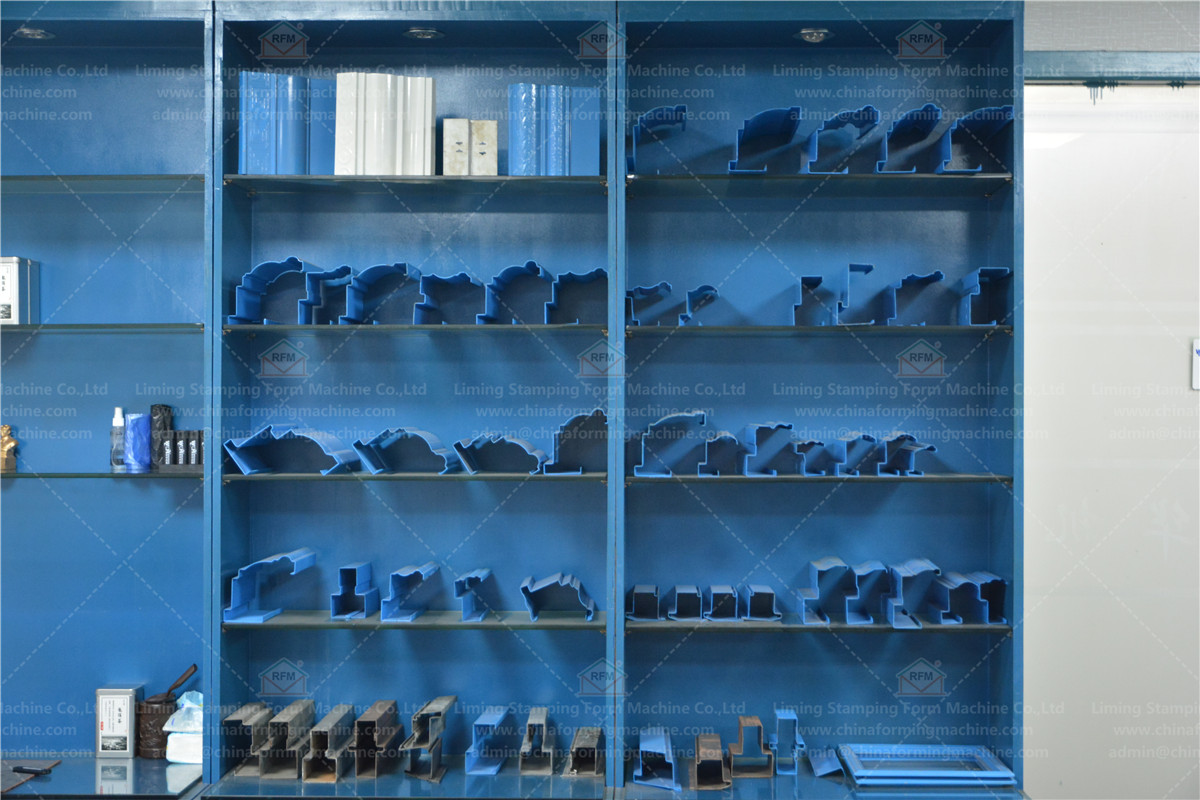

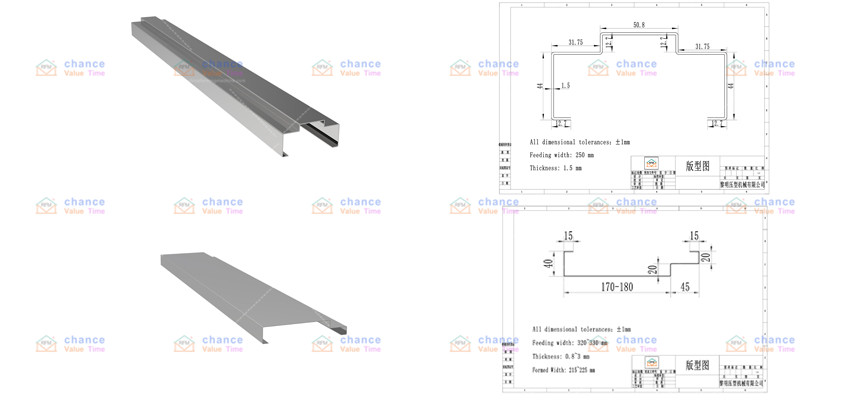

Provide Installation Method & Customized Profile For Free

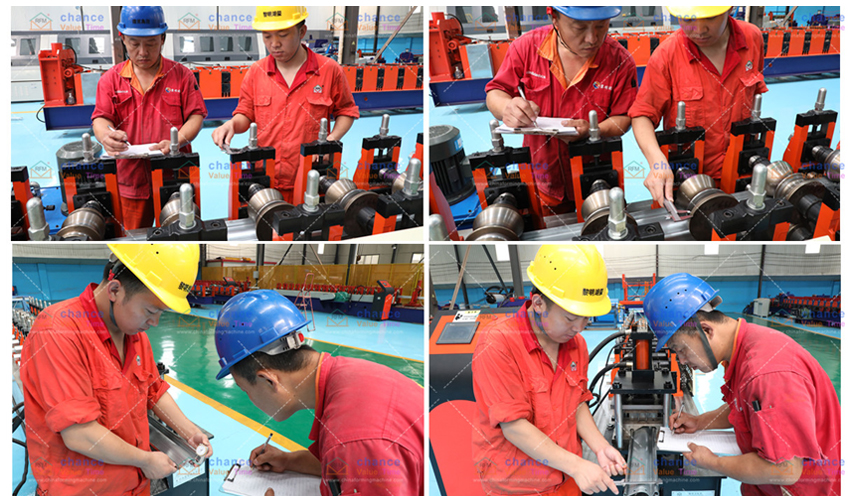

Professional Inspection Process

Customers’ Application Projects

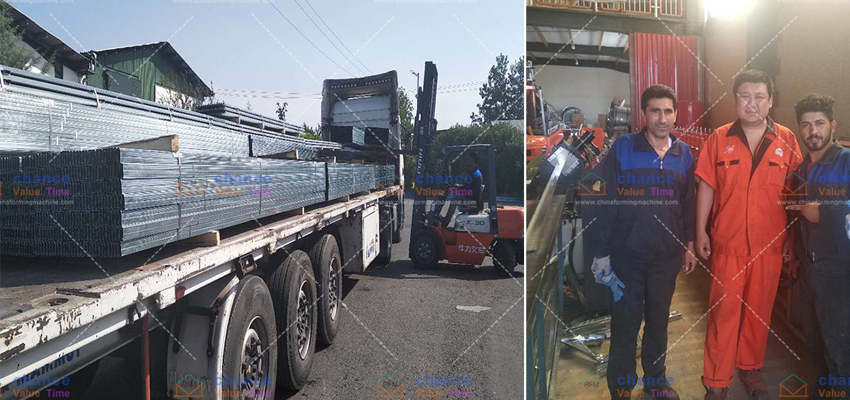

Inspection/Package/Delivery

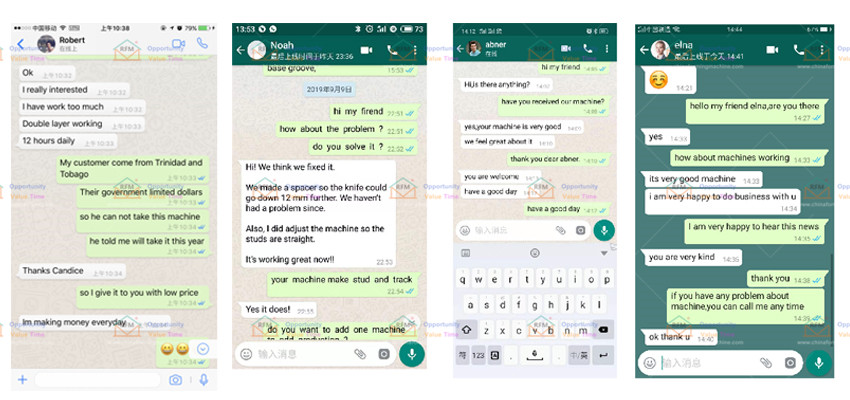

Customer Feedback
