The control system is simple to operate, normal automatic production does not need to go back first, but advances one time, pressing, cutting is completed. The precision is high, the cutting accuracy of each piece is less than 0.1mm, which meets the process requirements. The program runs stable and reliable.

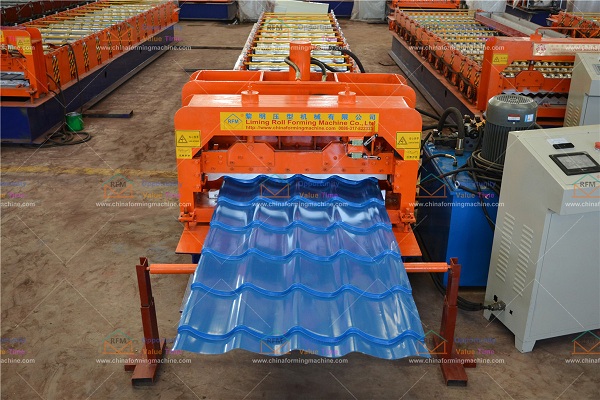

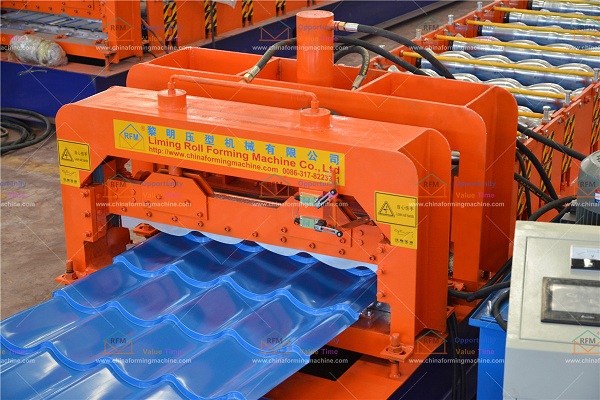

The glazed tile machine is divided into three parts, the roller forming part, the pressing part and the cutting part. The roller forming part is dragged by the motor, and the chain drives the rollers to rotate. The pressing part is the hydraulic cylinder that drives the mold to move up and down, which can change the color The steel is pressed into many sections, shaped like a glazed tile. The cutter part is driven by a hydraulic cylinder to move the cutter up and down, which can cut off the colored steel tile. The production process of the glazed tile tile press machine is as follows: the colored steel plate enters the roller table forming part, and the forming part is pressed , Pressed into equal distance section by section, the cutter is responsible for fixed-length cutting.

The glazed tile machine must use the high-number pulse input function, the high-number input performance is excellent, and the AB phase selection has strong anti-interference ability. And the fixed value interrupt function is used to ensure the accuracy. The glazed tile machine has many parameters to be set, and the text screen is used to set the parameters. There are two types of device parameters and user parameter settings. The device parameters are: single pulse length, overshoot, pressing distance, pressing time, cutting time, etc. The user parameters are: number of sheets, end section, pitch, Number of sections, etc.
