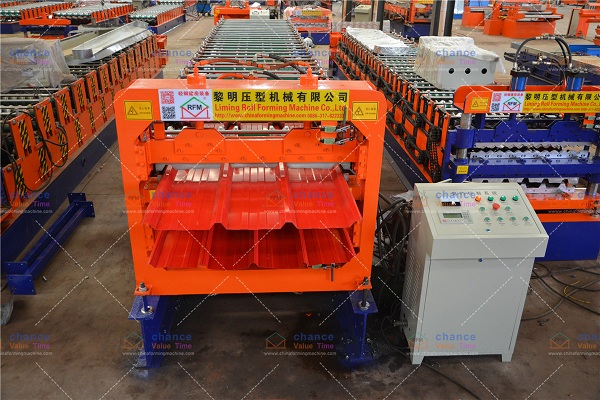

Double laminated tile machine is mainly composed of left and right body, bottom connecting rod, top chassis cover, sliding seat, hexagonal runner, pulley, gear mechanism, sheave mechanism, cam mechanism, lubrication pump, oil system, electronic control part, etc. composition. The stamping process of the upper die of the machine: the motor drives the input shaft through the pulley, and drives the upper shaft through the pinion gear and the large gear, and the sliding seat equipped with the upper die is driven up and down by a set of cam mechanisms to realize the tile pressing. Lubricating pumps are installed in the left and right cabinets. When the machine is working, the oil pipe conveys lubricant to each frictional moving part.

The operation method of the double laminating tile machine is as follows:

1. The double-layer tile pressing machine operates strictly according to the operation regulations.

2. Before starting the machine, add smooth oil on time, at a fixed point and in a fixed amount according to the requirements of the smooth chart. The oil should be clean and free of precipitation.

3. Machine tools often adhere to clean, unpainted local anti-rust grease.

4. The smooth oil in the electric bearing should be refilled regularly, and it is often introspected whether the local tasks of electrical appliances are normal, safe and reliable.

5. Check whether the V-belt, handle, knob and keys are damaged on schedule. If they are severely worn, they should be replaced in real time and reported for additional parts.

6. Anti-repair switch, insurance, handle, and guarantee their tasks on schedule.

7. Lubricate and clean the machine tool 10 minutes before get off work every day.

8. It is strictly forbidden for non-designated personnel to operate the double-layer tile pressing machine, so that people usually leave the machine to stop.
