How to link the keel

Briefly tell you the connection between the keels: After the boom is fixed on the floor with tension bolts, connect the T-shaped main keel with the T-shaped keel hanger. If the T-shaped keel needs to be extended, use it at its interface. The T-shaped keel connector is fixed, and the secondary keel and the main keel are plug-in connection, and no accessories are needed.

If the suspended ceiling has additional load or a large area of the suspended ceiling, a U-shaped load-bearing keel is required, that is, after the boom is installed, first connect the U-shaped main keel and the boom with a U-shaped load-bearing keel (main keel) hanger, and then use The T-shaped keel pendant connects the T-shaped longitudinal keel with the U-shaped main keel

1. T-shaped keel hanger: used to connect the T-shaped main keel and the boom. It is only suitable for suspended ceilings without additional load without light steel keel machines.

2. T-shaped keel connector: used for the connection of the longitudinal T-shaped keel, that is, the main keel.

3. U-shaped keel hanger: used to connect the bearing keel (main keel) and the boom.

4. T-shaped keel pendant: used to connect U-shaped light steel keel machine and T-shaped longitudinal keel.

5. U-shaped main keel connector: used to extend the U-shaped load-bearing keel.

If you want to know more about the industry, please contact Liming stamping form machine Co., Ltd.

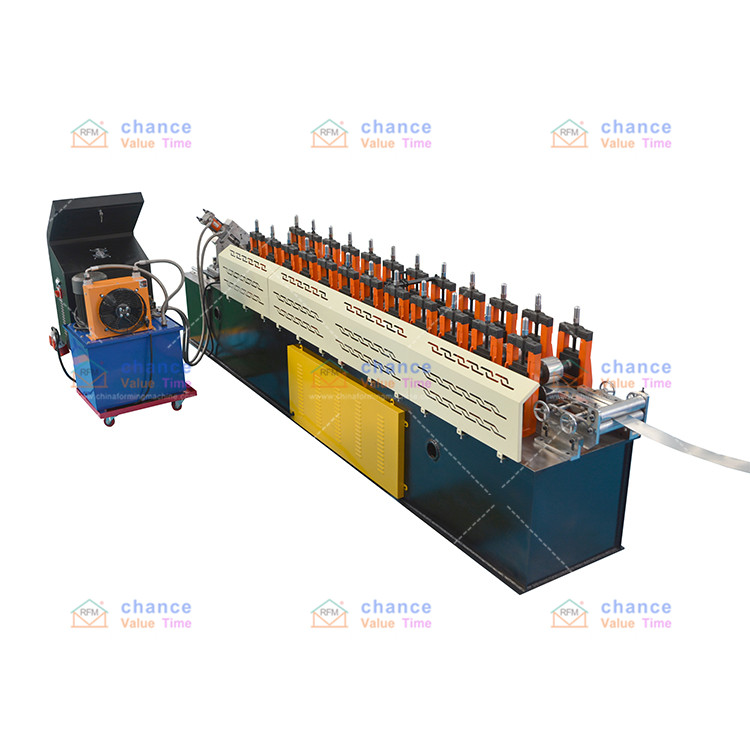

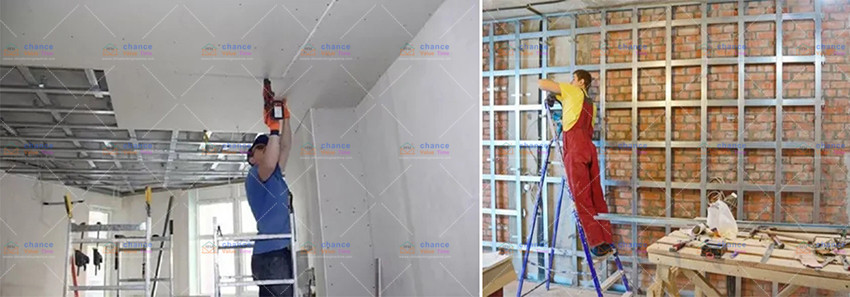

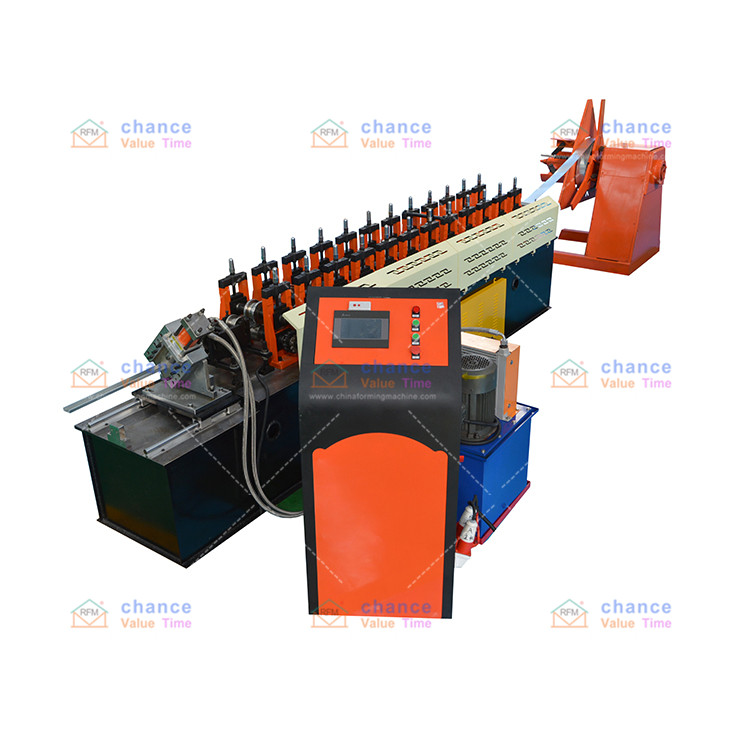

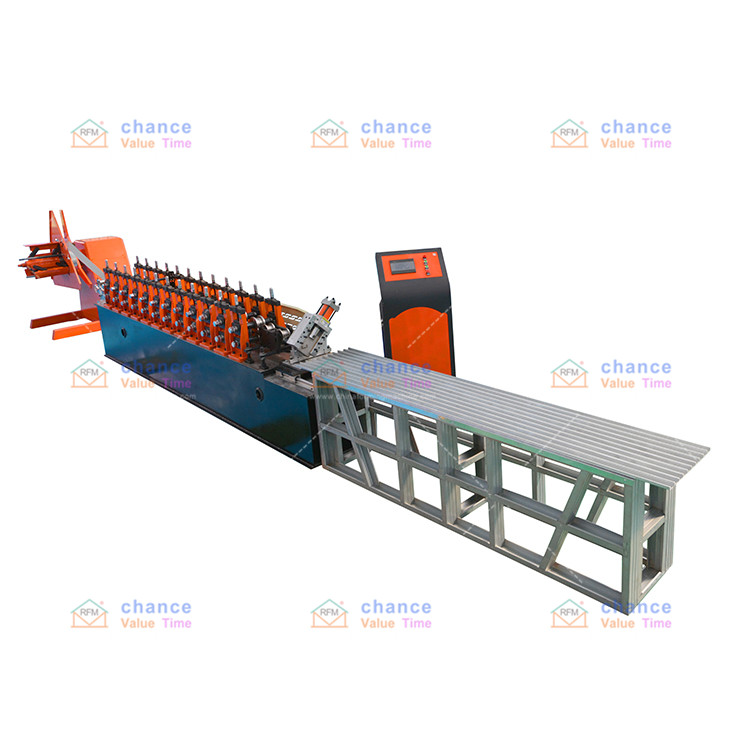

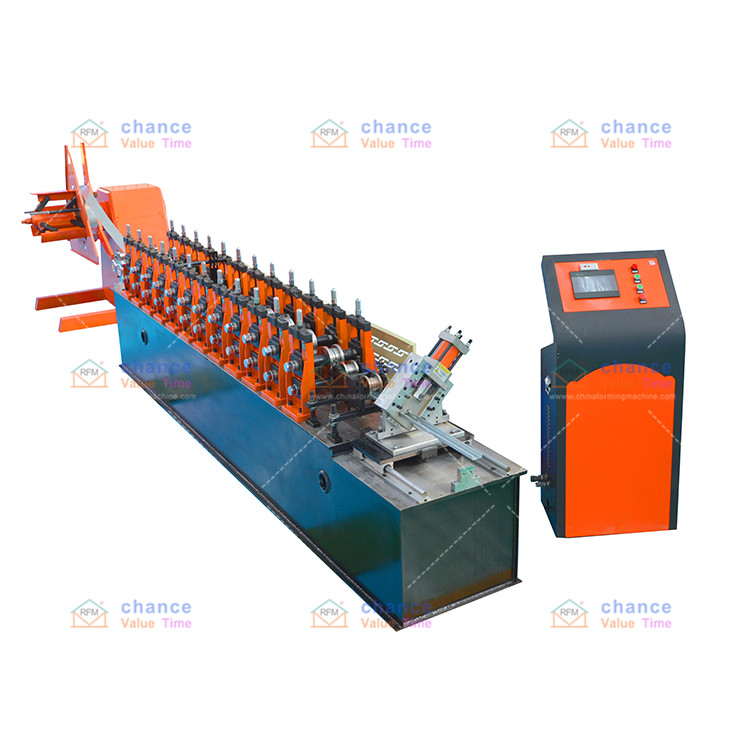

C channel roll forming machine Application Range & Scene

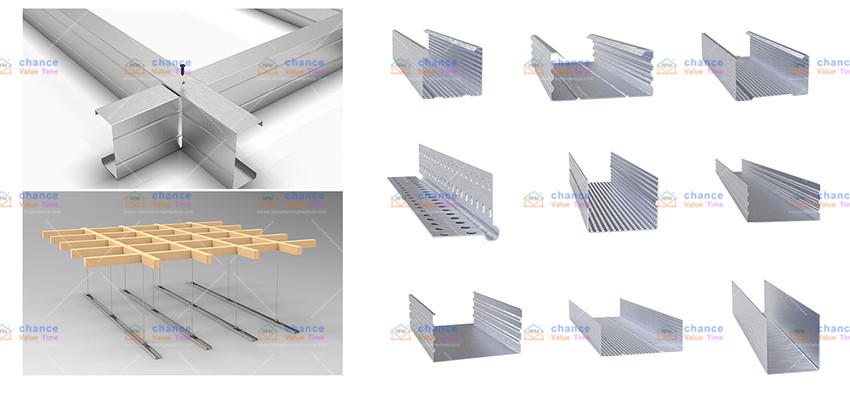

Provide Installation Method & Customized Profile For Free

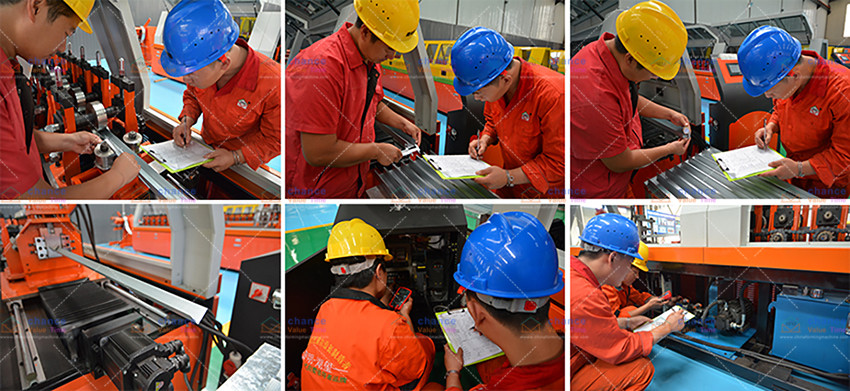

Professional Inspection Process

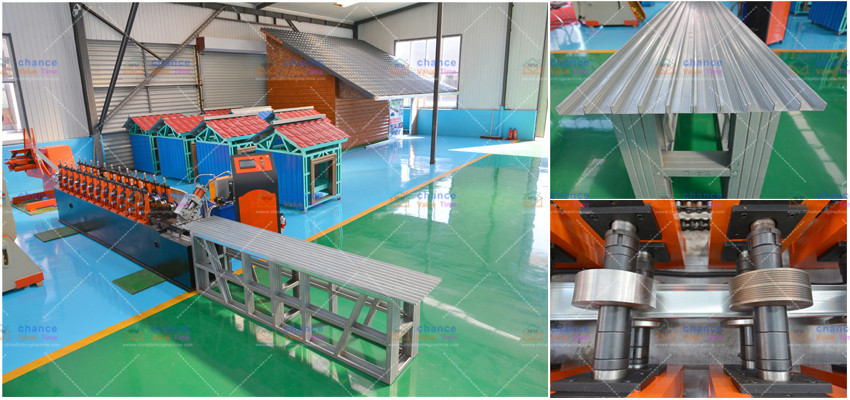

Customers’ Application Projects

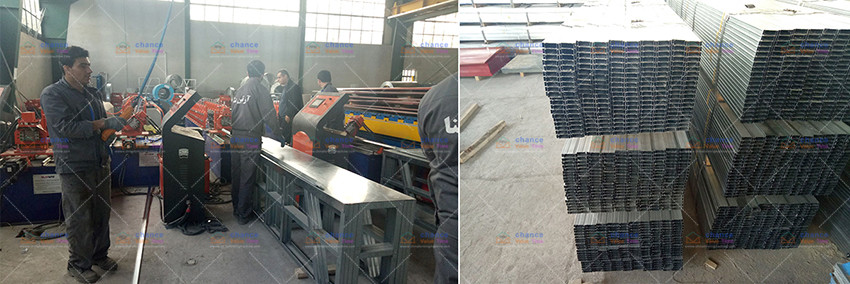

Inspection/Package/Delivery
