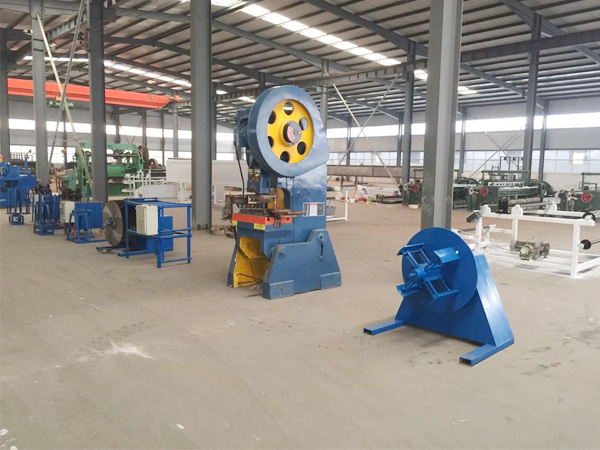

Blade rope stabbing machine

Blade barbed wire, also known as blade barbed wire or blade barbed wire, is a new type of protective net. Blade barbed wire has excellent characteristics such as beauty, economic practicality, good anti blocking effect, and convenient construction. Currently, blade barbed wire has been widely used in many countries’ industrial and mining enterprises, garden apartments, border posts, military fields, prisons, detention centers, government buildings, and other national security facilities

The new type of multi blade rope stabbing machine is a new equipment researched by Jinlu Company in recent years. This equipment has excellent performance such as high production efficiency, low raw material waste, and simple operation. The machine consists of two wire wrapping machines and a main unit that can punch and cut nine barbed tapes.

Its perfect embodiment:

High efficiency, capable of producing 80kgs of steel strip per hour.

Low loss, the raw material loss of old models is 40%, while the LM-9 model reduces it to 15%.

External dimensions:

1. Wire wrapping machine: 2 units X length 1.3m X width 0.7m X height 1.1m

2. Host (steel strip cutting machine): Length 1.1m X Width 0.85m X Height 2.0m

3. Retractor: Length 1.4m X Width 0.75m X Height 1.0m

4. Total weight: 2.6T

This equipment is designed for the professional production of blade gill nets and is mainly divided into two parts:

1、 Steel strip cutting part: JB-23 press machine is used, with a pressure of 25T

1. Maximum speed of 100r/min, power of 2.2kw

2. The production of blade gill nets with lengths of 25mm, 22mm, 15mm, 11mm, etc. requires the setting of molds for various specifications.

3. Cut the steel strip into 9 steel strip pieces, with a production thickness of 0.5mm per hour, a blade length of 22mm, and 80kgs of steel strip pieces

2、 The wire wrapping forming machine is used to wrap steel wires and blade steel strips together and make the required circular long mesh.

1. Motor power: 1.1kw

2. Speed: Adjustable

3. Line speed: 16m wire per minute

4. Net circle diameter: 450mm-980mm

5. Hourly output: 150kg
