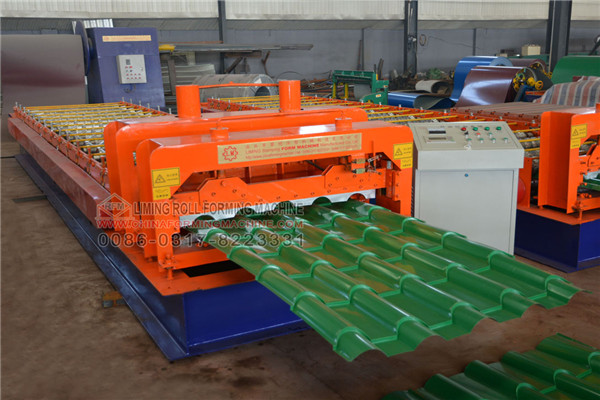

Bamboo Glazed tile steel roll forming machine consists of several part.

Bamboo Glazed tile steel roll forming machine is divided into three
parts, forming part of the roller, pressure-type part, cutter part. Bamboo Glazed tile steel roll forming machine ’s

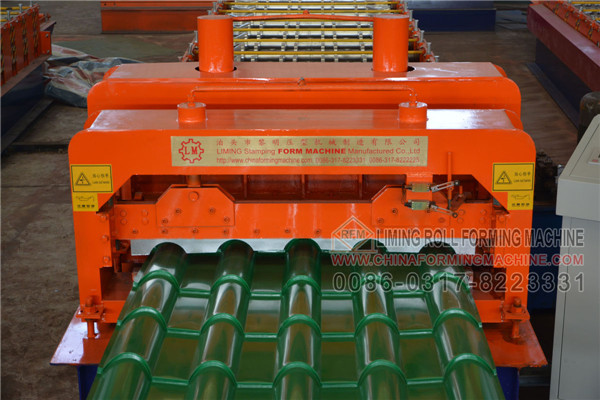

roller forming part of the drag from the motor, chain driven rollers rotate. Bamboo Glazed tile steel roll forming machine -pressure part is moved up and down driven by a
hydraulic cylinder mold, can be colored steel into many sections, the shape of
glazed tile.

Bamboo Glazed tile steel roll forming machine cutter portion is driven
by a hydraulic cylinder to move up and down the tool, you can put color steel
cut off. Bamboo Glazed tile steel roll forming machine
production process is as follows: color steel roller into the molded part after
molding to-pressure part, pressed into an equidistant one, the cutter is responsible
for cutting to length. Bamboo Glazed tile steel roll
forming machine control information on the implementation part of a
frequency converter drive motor, hydraulic motor, two-pressure hydraulic
solenoid valves, two hydraulic cutter solenoid valves.

Bamboo Glazed tile steel roll forming machine detection section:
detecting color steel tile length encoder, pressure-type upper and lower limit
switch, upper and lower limit switch cutter, presses down the operation button,
the cutter up and down stroke keys, emergency stop switches, hydraulic
start-stop switch and so on. Bamboo Glazed tile steel
roll forming machine ’s PLC selects
KDN-K3 series KDN-K306-24AR. Bamboo Glazed tile steel
roll forming machine have 14 inputs / 10 relay outputs, just to meet the
input and output requirements.
