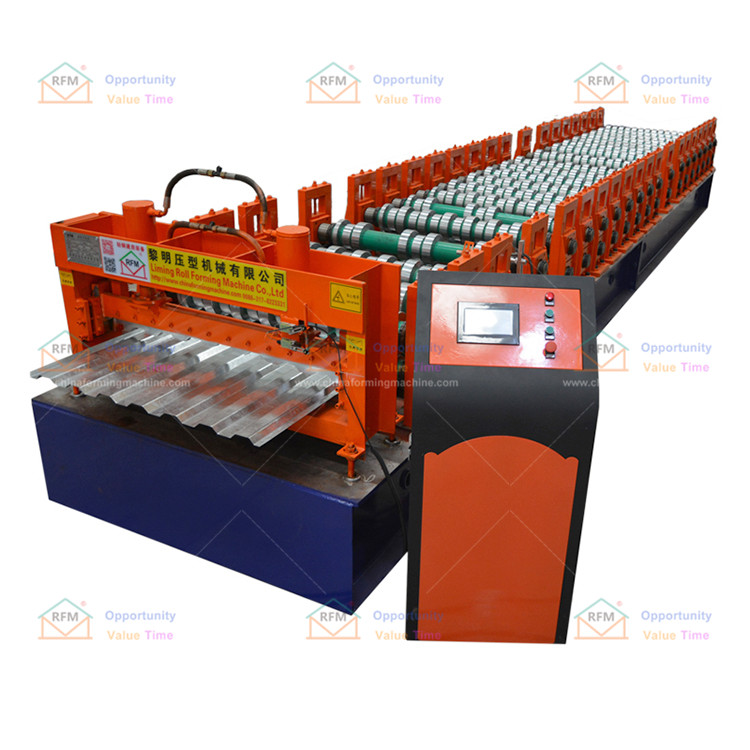

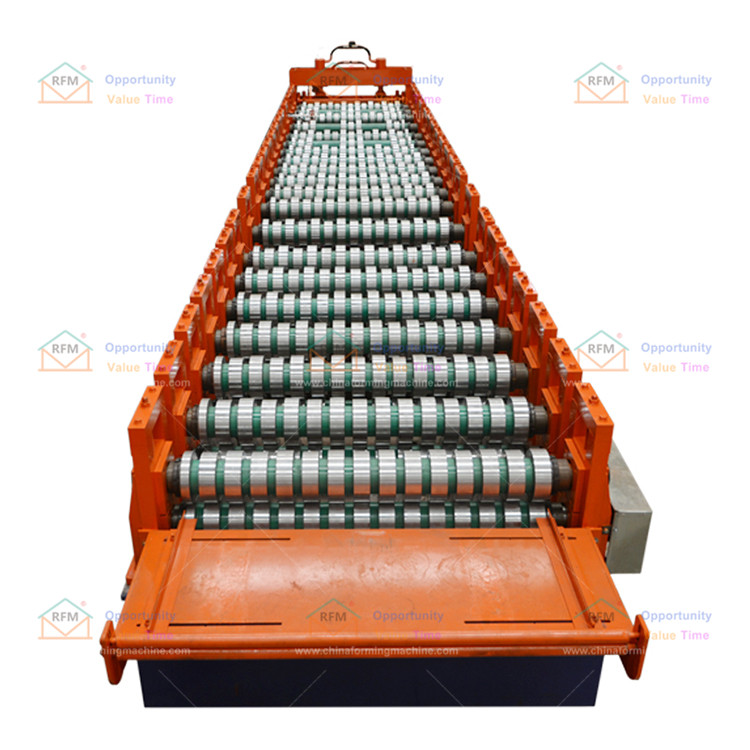

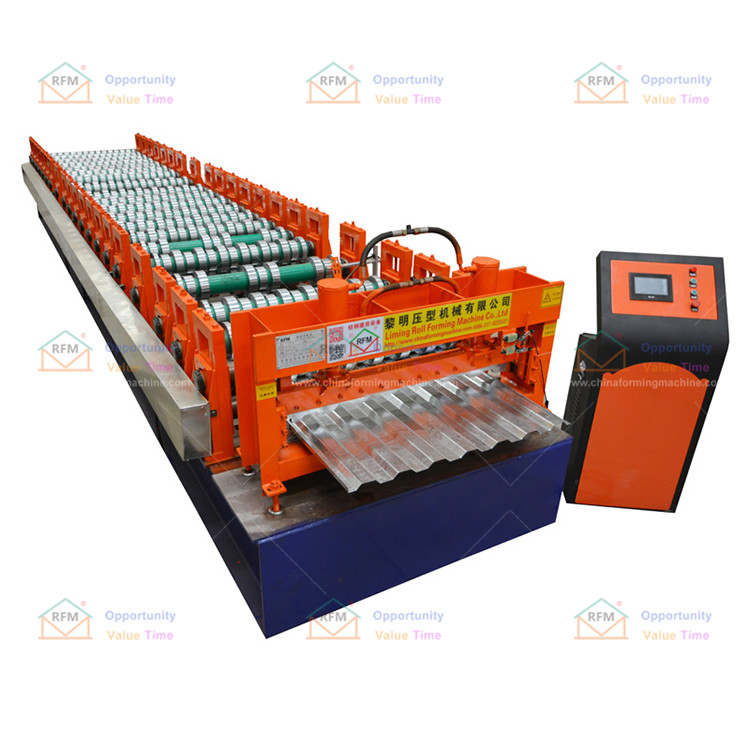

The car panel forming machine is also called car panel equipment, car panel machine, the main purpose is to produce car panels, container panels, etc., designed and customized according to the thickness, width and peak height of the board.

Technical parameters of automobile panel pressing equipment:
Equipment length 7600mm, width 950mm, height 1000mm;
Equipment power 11 kW, hydraulic station power 11 kW;
The roller is made of bearing steel (GR15), annealed after forging;
The base is made of 310H steel;
Adopt the next five to four levels to ensure leveling;
Adopts the secondary molding method to ensure that the product is square and right angle, and the size of the upper side can be made;
Rolled material thickness 1.5mm-3mm (the thickness can also be designed according to user requirements);
The width of rolled C-shaped steel is 80mm-300mm;
Rolling speed 8-9m/min;
Adopt new butt-type adjusting steel sleeve, which is simple, fast and firm;

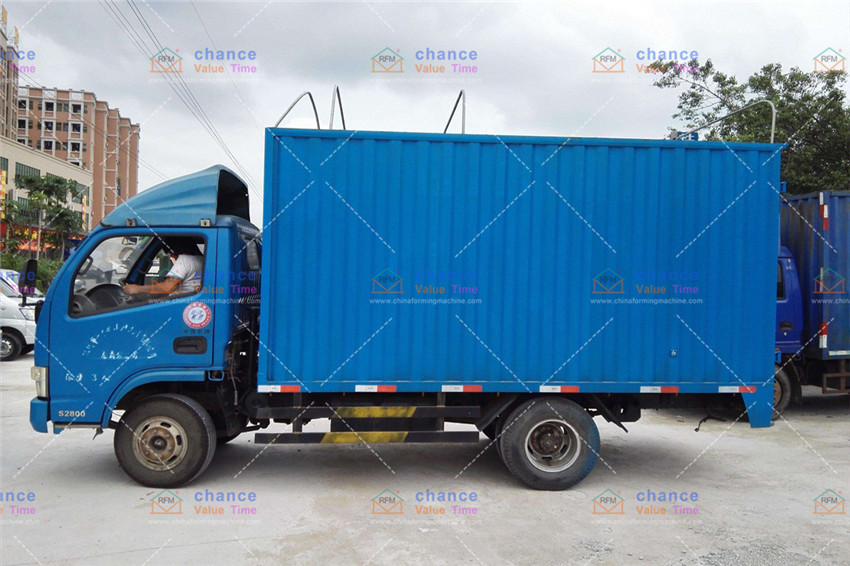

Application Range & Scene

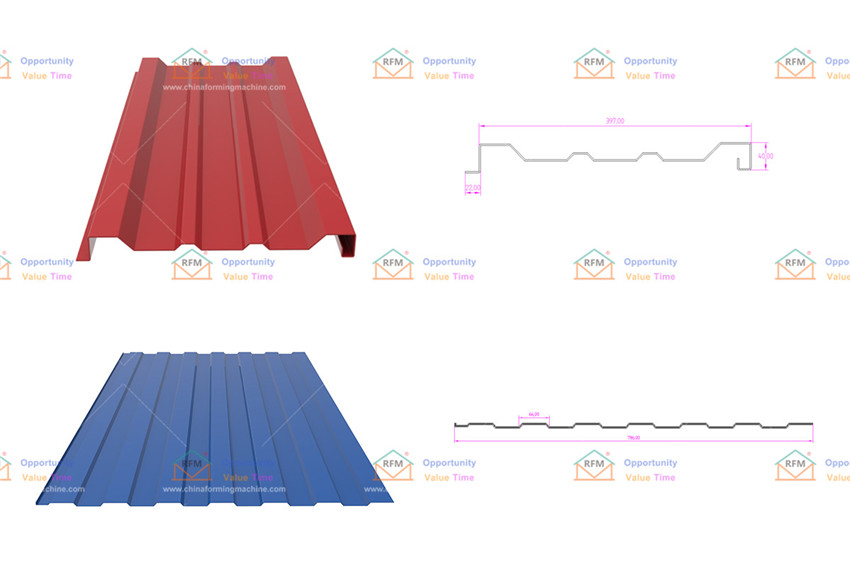

Provide Installation Method & Customized Profile For Free

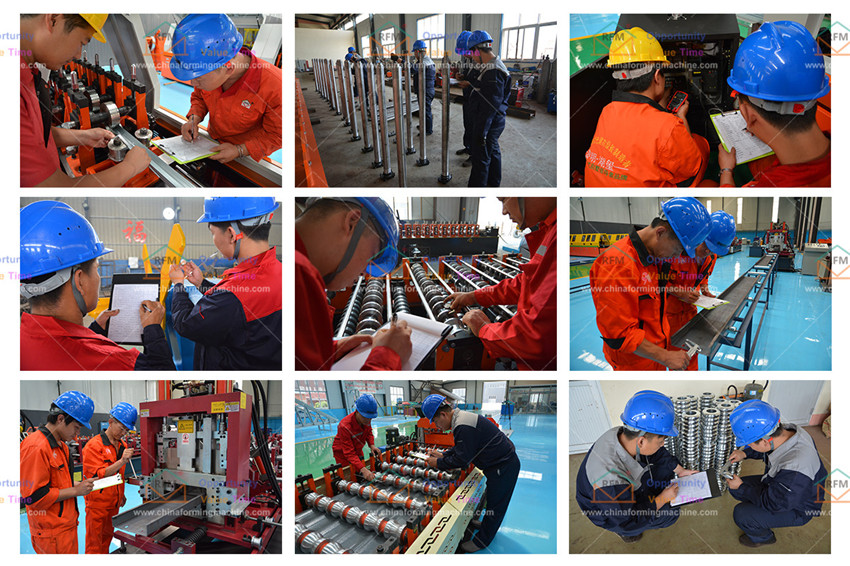

Professional Inspection Process

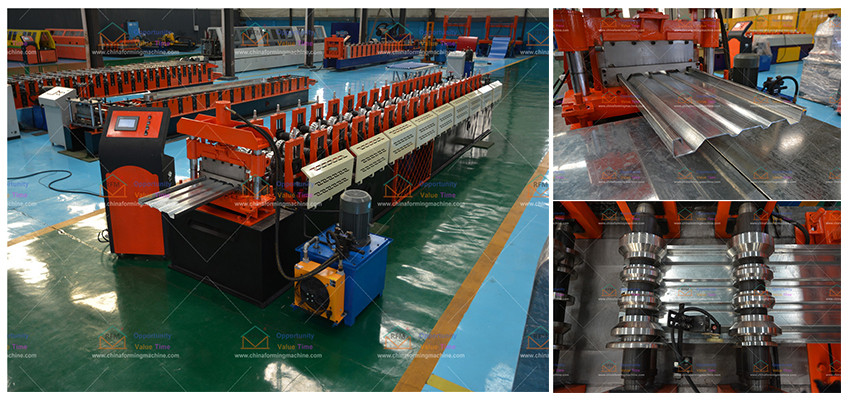

Customers’ Application Projects

Inspection/Package/Delivery

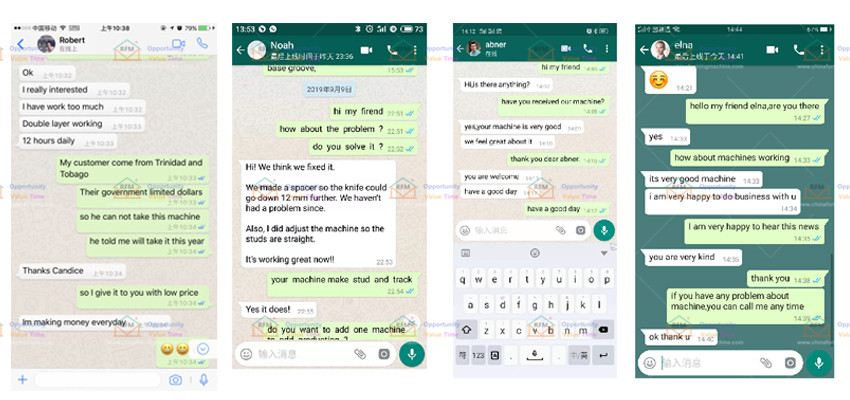

Customer Feedback
