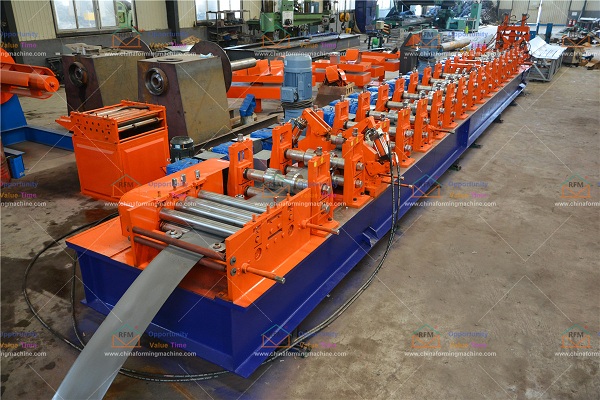

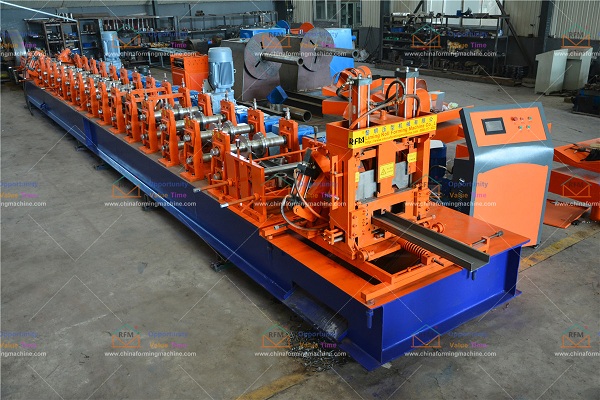

Technical parameters of C-shaped steel tile press equipment: C-shaped steel machine equipment is 7600mm long, 950mm wide and 1000mm high; C-beam mechanical power is 11 kilowatts, hydraulic station power is 11 kilowatts; roller adopts bearing steel (GR15), forging back Fire; the base is made of 320 I-beam steel; ensure flatness; the product is square and right angle, the thickness of the rolled material is 1.5mm-3mm (the thickness can also be designed according to customer requirements); the width of the rolled C-shaped steel is 80mm-300mm ;Rolling speed 8-9m/min; Adopting new butt-type adjusting steel sleeve, simple, fast and firm; It has the advantages of fast adjusting speed, fast punching and fast cutting in the same industry.

C-type steel tile press is a single-roll forming unit that can produce a variety of C-type purlin products with a set of rollers. The machine is mainly composed of passive loading rack, leveling device, punching device, cutting device after forming, hydraulic station, computer control system, etc. This machine uses automatic flying saw punching, easy operation and other characteristics.

The C-shaped steel products rolled by the C-shaped steel tile press machine have good tensile and bending performance, straightness, automatic fixed-length cutting, automatic punching, high degree of automation, fast and convenient installation, and the products can be used as large and medium-sized industrial civil buildings. The main load-bearing structures, such as the roof load-bearing load and wall flat support of factory buildings, warehouses, hangars, hangars, exhibition halls, theaters, stadiums and market sheds. Cold-formed steel is the main material for making light-weight steel structures, and is made by cold bending of steel plates or steel strips.

The wall thickness of the C-type steel tile press can be made very thin, and the production process is greatly simplified and the production efficiency is improved. It can produce various profiles and cold-formed steel of different materials with uniform wall thickness and complex cross-sectional shape that are difficult to produce by the general hot rolling method.
