828 Glazed Tile Roll Forming Machine

2020-05-29 0 industry knowledge, News

Glazed
tile roll forming machine production process is not complicated, the production
line equipment can be used automatic production line equipment production, but
also optional part of the mechanical equipment and manual combination of
production, automatic production line equipment, high automation procedures,
requiring less labor. The use of some mechanical equipment and manual
combination of production methods.

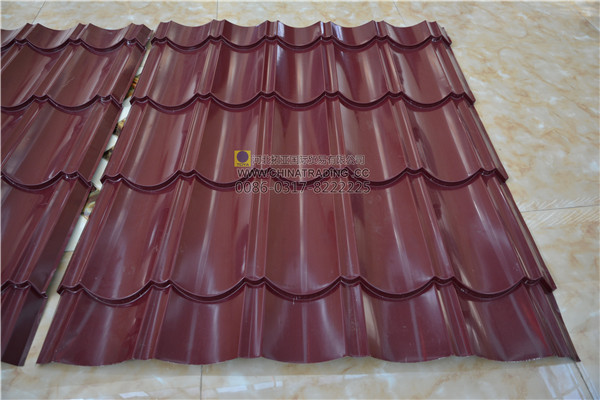

Glazed
tile Product Features:

Glazed
tiles with high-quality ore raw materials, after screening smash, high pressure
molding, high temperature firing. With high strength, good flatness, low water
absorption, bending, freezing, acid, alkali, never fade, never weathering and
other significant advantages. Widely used in factories, houses, hotels, villas
and other industrial and civil buildings, and its diverse shapes, glazed
rustic, colorful, environmentally friendly, durable, won the architectural
masters of the respected. Western-style glazed tile relative to the traditional
glazed tile, both the following characteristics:

Water
resistance: As the Western-style glazed tile surface coated with bright glaze
layer, so that it does not water, no water.

High
strength: Western-style glazed tiles are fired at high temperatures, to the
national standard, can withstand more than the body’s weight, and can withstand
the wind and sun for a long time.

Adaptability
to various climates: Due to the unique low water absorption characteristics of
Western glazed tiles, it can be used not only in the southern region, but also
in the cold climate of northern China, and keep the color unchanged for long
periods of sunlight.

Adaptation
to Tranquility: Due to the unique craft design of Western-style glazed tiles,
it has a good ability to adapt and reduce the noise, and not long moss, without
artificial care.

Rich
heterosexual accessories: In order to make the roof structure complete and
beautiful, Western-style glazed tile with 14 kinds of unused main tile
accessories, so that the building more artistic atmosphere.

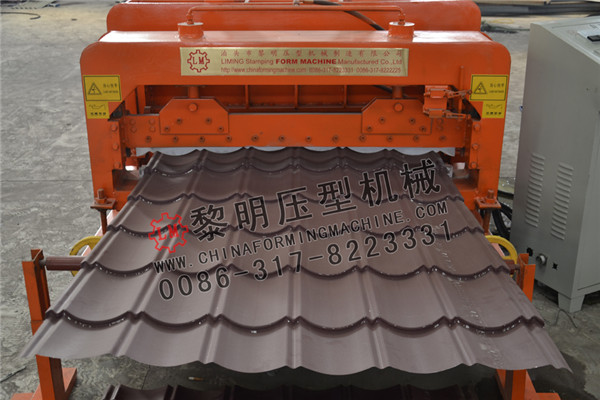

Hua Wei
828 antique glazed tile type tile machine

1
prepared to install Dimensions: 6200mm × 1400mm × 1200mm

2 Total
weight of equipment: about 3600kg

3
Material width: 1000mm, raw material thickness: 0.2-0.8mm

4 forming
pass: 9 Road

5 electronic
control system: the whole machine with industrial computer PLC frequency
control

6 machine
power: 3kw, hydraulic shear power: 3kw

7 Working
speed: 2000mm-3500mm / min

8
hydraulic station pressure: 10-12Mpa

9

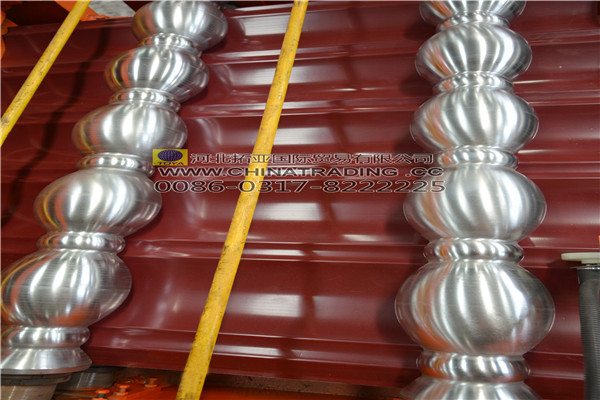

pressure tile machine roll material: 45 # steel surface hard chrome plated,
hardness HR55 ° -57 °

10
prepared frame all by 250 # I-beam welding, the plate thickness: 12mm,

11 way: 6
points by the chain drive.
